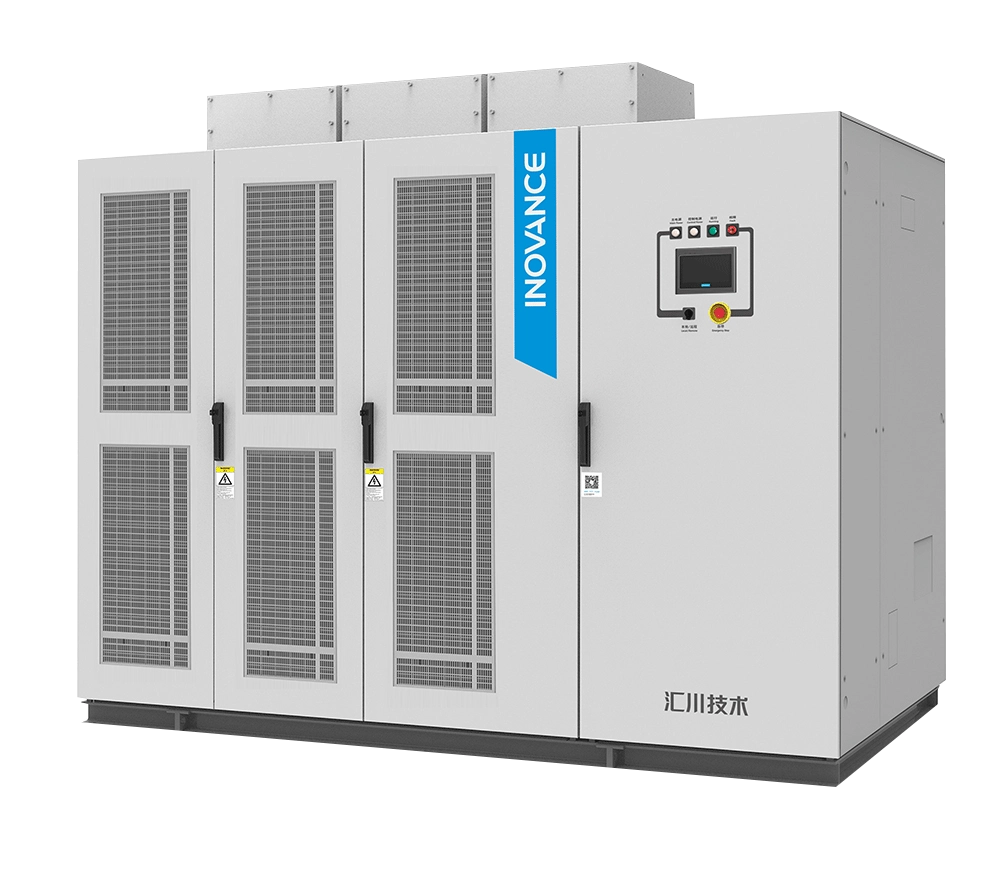

Medium voltage inverters are vital in power systems. They change electrical energy well. These devices work in the 1 kV to 35 kV range. Their main task is to manage power for industrial uses. They save energy and keep systems steady. By tweaking voltage and frequency, medium voltage inverters help many machines and tools.
Medium voltage inverters serve industries like manufacturing, mining, utilities, and transport. They adjust motor speeds for conveyor belts, pumps, and fans. These devices also aid green energy systems, like wind turbines and solar farms. They turn raw power into usable electricity. Plus, they help grids stay stable by handling load shifts.
Capacitors are key in medium voltage inverters. They store energy to smooth voltage changes. This keeps power delivery steady. Bus capacitors do several jobs, like smoothing voltage and guarding power modules. They hold energy briefly and release it when needed. This holds voltage firm during sudden load shifts. It's vital for avoiding issues in delicate industrial tasks.
Capacitors also boost power quality in medium voltage inverters. Bus capacitors ease voltage shifts by storing and releasing energy. This keeps systems running smoothly. They cut harmonic distortions and limit voltage spikes. This protects fragile electronic parts in the inverter. It extends part of life and ensures good work under changing conditions.
Capacitors help cut energy losses in medium voltage inverters. They stabilize bus voltages and lower stray inductance (ESL). This stops high spike voltages that could cause waste or damage. Higher ESL means bigger spike voltages, which may harm power devices. Capacitors with low ESR (Equivalent Series Resistance) reduce heat and improve energy savings.
Voltage stability matters for complex industrial systems using medium voltage inverters. Capacitors keep performance steady despite load changes or tough conditions. For example, DC link capacitors handle DC filtering and smoothing. The MKP-LL series has capacitance from 170μF to 2200μF and voltages of 600Vdc to 1500Vdc. These suit stable DC bus voltages and strong pulse currents.

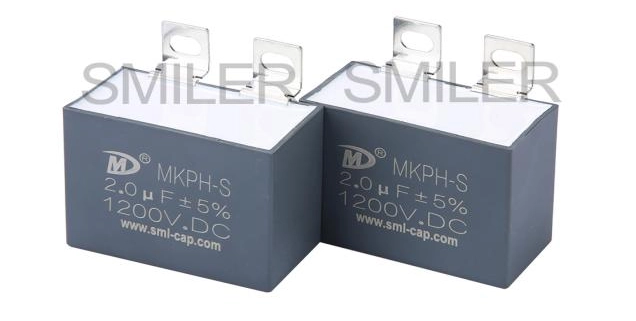

Snubber capacitors shield IGBT modules from overvoltage during switching. The MKPH-S series, with capacitance from 0.1μF to 4.0μF and voltages of 850Vdc to 2000Vdc, boosts reliability. They also cut electromagnetic interference.
Medium voltage inverters operate in the 1 kV to 35 kV range. These inverters use smart technology for efficient power conversion. By adding capacitors well, SMILER’s capacitor boosts inverter performance and steadiness. Capacitors ensure smooth voltage control and protect power modules from stress.
SMILER uses new capacitor technology in its medium voltage inverters. Old cylindrical capacitors with laminated busbars have issues. These include high cost, big size, weak overcurrent handling, and high inductance. SMILER uses module capacitors with an integrated design. This combines battery cells and laminated busbar welding.
This design brings benefits:
1. Small Size: The modular setup shrinks the system.
2. Strong Current Handling: It supports big pulse currents without problems.
3. Low ESR and Inductance: The module capacitor cuts cost, size, and inductance. It offers strong current, low ESR, and high customization.
4. Customizable Options: Capacitors can fit specific needs.
These features ensure SMILER's inverters work well in tough conditions.
Medium voltage inverters with advanced capacitors are used widely. In manufacturing, they adjust motor speeds for conveyor belts and robotic arms. Mining uses them for heavy pumps and ventilation. Utilities rely on them for grid stability by managing load shifts.
Green energy systems, like wind farms and solar plants, benefit from these inverters. They turn variable energy into steady electricity. Capacitors ensure smooth DC filtering and voltage stability.
For example:
1. DC Link Capacitor Applications: Used for DC filtering and smoothing.
1. Capacitance: 10μF~5000μF
2. Voltage: 600V~7000Vdc
2. Snubber Capacitor Applications: Protect IGBT modules during switching.
1. Capacitance: 0.1μF~4.0μF
2. Voltage: 850V~6000Vdc
These uses show how capacitors improve efficiency across industries.
Medium voltage inverters with SMILER capacitor solutions succeed in real-world projects. A mining facility swapped old motor controls for inverters with snubber capacitors. This protected IGBT modules and cut maintenance costs. A solar farm used SMILER's MKP-LL series DC link capacitors to stabilize voltages. The system stayed steady despite weather changes.
These cases show how SMILER's capacitor solutions boost efficiency and cut downtime.
Q: What is a medium voltage inverter used for?
A: It adjusts motor speeds, manages green energy systems, stabilizes grids, and improves industrial tasks.
Q: Why are capacitors important in medium voltage inverters?
A: They stabilize voltages, cut distortions, store energy for steady delivery, and protect parts.
Q: What types of capacitors are used in inverter applications?
A: DC link capacitors (e.g., MKP-LL series) for filtering and snubber capacitors (e.g., MKPH-S series) for IGBT protection.
Q: How do capacitors improve efficiency in inverter systems?
A: They lower stray inductance, reduce heat with low ESR, stabilize voltages, and handle strong currents.
Q: What industries benefit most from medium voltage inverter technology?
A: Manufacturing, mining, utilities, transport, and green energy gain from their efficiency and steadiness.
