DC link capacitors find application in electric vehicle power systems to provide advantages over traditional electrolytic capacitors. The capacitors are uniquely designed to meet EV system needs.

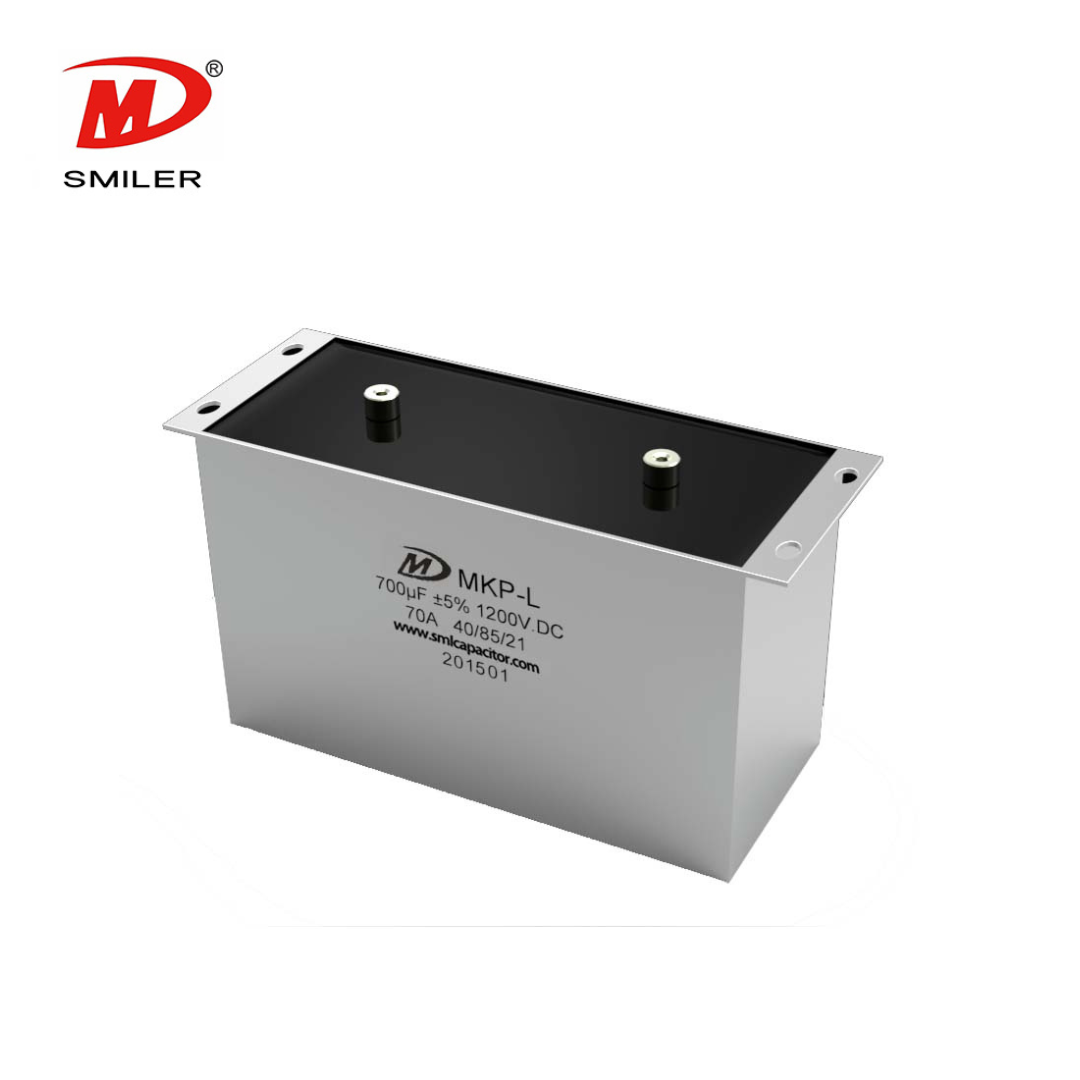

SMILER’s DC link capacitors like the DC Link MKP-L consist of a polypropylene film medium housed in an aluminum shell package with a plastic bracket for added durability. The internal potting material is resin filling (UL94 V-0). This ensures strength and dependability. This design enables users to efficiently swap out capacitors while offering low equivalent series resistance (ESB) as well as excellent handling of ripple current.
The electrical properties of DC link capacitors are essential for their performance in electric vehicle systems.
DC link capacitors are energy buffers in AC/DC rectifiers and DC/DC high-frequency converters that smooth voltage variations due to fast switching actions. This guarantees a steady power supply to the EV battery during fast charging.
By minimizing the voltage ripple and power losses, these capacitors enable greater system efficiency in charging systems. SMILER’s capacitors are tuned low in equivalent series resistance (ESR) and high for ripple current capability, which restricts heat generation and boosts energy transfer.
In DC fast chargers, capacitors enable rapid energy transfer by stabilizing the DC bus voltage which is essential for delivering high currents.
SMILER capacitors are rated for voltage in the range of 600 volts to 4000 volts and for capacitance in the range of 24 microfarads to 5600 microfarads with a capacitance tolerance of plus or minus 5 percent (designated by J) or plus or minus 10 percent (designated by K). The above ratings ensure that the capacitors are capable of handling energy flow within the power system of the vehicle to support applications with voltages and frequencies. The self-repair capability and extended lifespan further boost their reliability in certain conditions.
In electric vehicles, maintaining efficient energy conversion and storage is paramount.
They absorb transient currents and protect power modules such as SiC and IGBT from voltage spikes, ensuring the longevity of inverters and converters in EV drivetrains.
SMILER’s capacitors feature low equivalent series resistance (ESR) and ultra-low inductance (ESL ≤5—10nH) with the effect of minimizing energy loss and heat generation in high-power applications like 150—350 kW fast chargers.
SMILER’s DC-Link Capacitors are used in wind generation, solar generation, transportation such as EVs or HEVs, welders, elevators and motor drive applications. By reducing energy losses and power quality improvements, these capacitors are vital in ensuring efficient power systems for EVs.

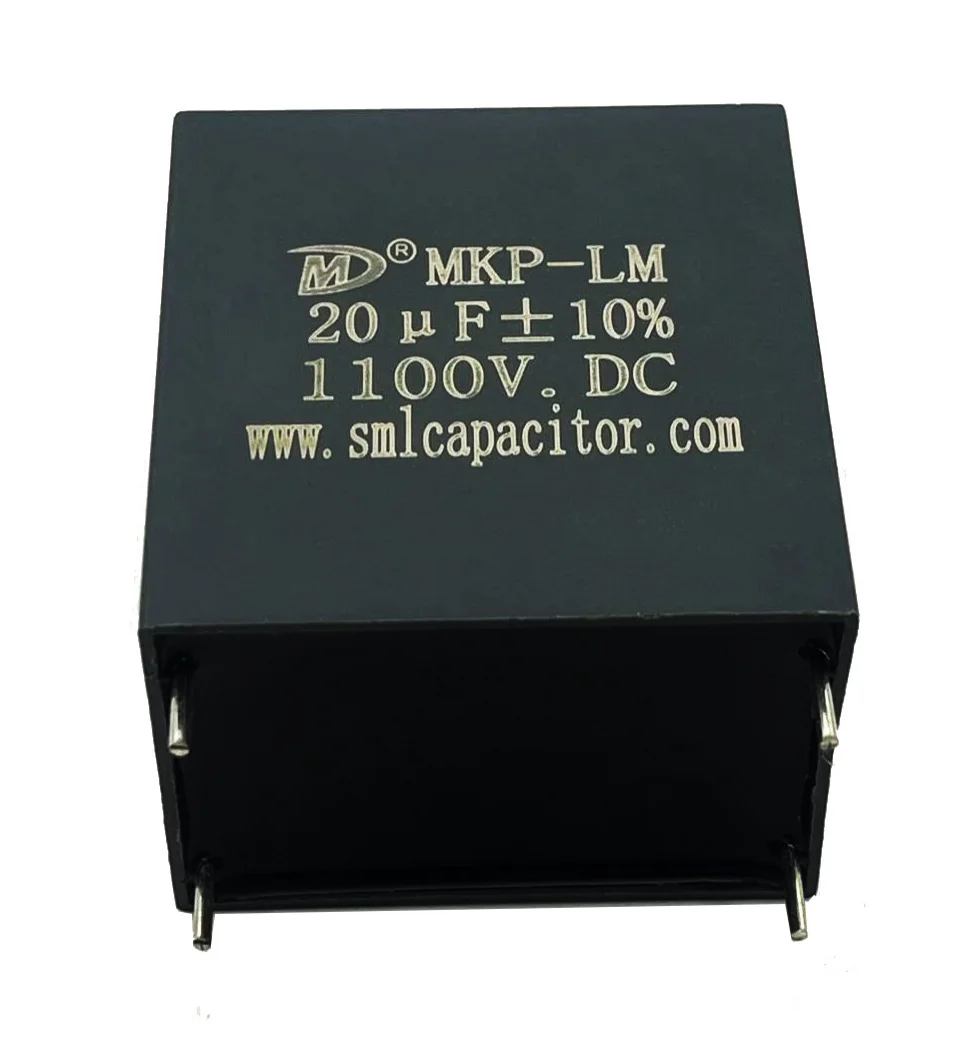

How DC Link Capacitors Improve Energy StorageEnergy storage is critical for the way electric cars work because it has a direct effect on their range and performance. SMILER's DC Link MKP-LM capacitors are particularly resistant to over-voltage and over-current stresses. Because of their self-healing property and lifespan, they could offer high reliability. Their ability to handle humidity conditions makes them suitable to handle different environmental situations that electric cars will encounter.
Installing and setting up DC link capacitors in vehicle (EVs) power systems demands careful attention to detail to guarantee top-notch performance levels.
When you're setting up these capacitors in the vehicle power system for optimal efficiency and reliability make sure to place them thoughtfully. Ensure capacitors are positioned away from high-heat components to avoid thermal stress. Use capacitors rated for -40°C to +105°C operation to withstand extreme EV environments.
Additionally, select capacitors with voltage ratings matching the DC bus and pulse currents up to 30kA for surge absorption. Ensure low ESR (<5mΩ) and ultra-low inductance (ESL ≤10nH) to minimize losses in high-frequency circuits.
SMILER offerings boast a sturdy design with a mix of metalized polypropylene film and an aluminum casing along with a plastic bracket to guarantee durability in tough situations. Properly arranging them ensures the capacitors efficiently control energy flow to assist high voltage and high-frequency use.
Incorporating DC link capacitors into electric vehicle power systems can pose obstacles like handling high voltages and ensuring durability over time while maximizing energy efficiency. Nevertheless, SMILER’s DC link capacitors tackle these issues by offering innovative attributes such as self-repair capabilities and extended longevity.
A typical issue is keeping capacitor efficiency consistent in surroundings. The DC Link MKP-LM capacitors provide resistance to over-voltage and over-current situations while remaining highly reliable thanks to their self-repair feature. They are crafted to endure conditions like high levels of humidity making them a great fit for electric vehicles.
One more obstacle is making sure that SMILER’s capacitors can work with EV power systems without needing major changes. The good thing about SMILER’s capacitors is that they are adaptable and can be adjusted based on the customer’s voltage and capacity needs. This makes it easy to incorporate them into uses, like frequency converters, dustrial power supplies and car DC converters seamlessly.
SMILER excels in the realm of DC link capacitors by prioritizing the improvement of vehicle (EV) power system efficiency and dependability. They are recognized for their cutting-edge automated facilities that guarantee efficiency and precision throughout their production processes. The company maintains quality control measures with a success rate of over 99.93%, based on a daily output of 300,000 items. SMILER’s DC Link capacitor solutions in electric vehicle powertrains demonstrate the following innovative design and technical advantages. SMILER’s DC Link capacitor adopts a metalized polypropylene film structure, supports 1100VDC rated voltage (such as 420µF/1100VDC model) and can be directly integrated into an 800V high voltage battery platform to reduce multistage conversion loss. Through self-healing thin film materials and redundant electrode structure, achieve charge and discharge cycle life >1 million times (equivalent to 500,000 km vehicle life).
A: SMILER's DC-Link Capacitors are designed with low ESR, high ripple current capability, self-healing and long lifetimes which make them optimized for effective energy flow management in EV power systems. The features make the capacitors to be tolerant to high-voltage and high-frequency applications.
A: SMILER utilizes automated production lines that streamline production processes and maintain strict quality control measures to ensure that every capacitor meets the necessary high standards for use in electric vehicles. Its thorough methodology ensures that its capacitors deliver performance in diverse environmental scenarios.
SMILER remains at the forefront of EV technology advancement by prioritizing innovation and maintaining high-quality standards in the production of their state of the art DC link capacitors. These components not boost the efficiency of electric vehicles but also play a significant role in promoting global sustainable energy initiatives.
