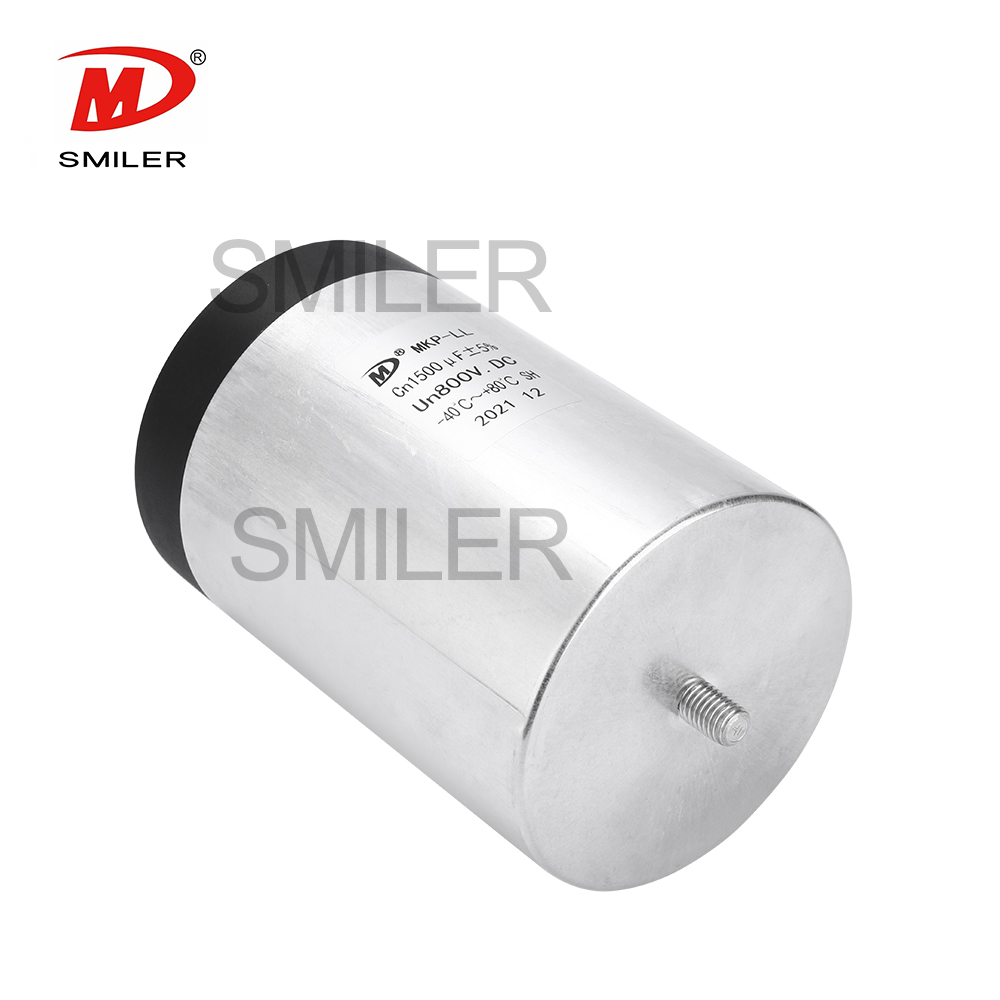

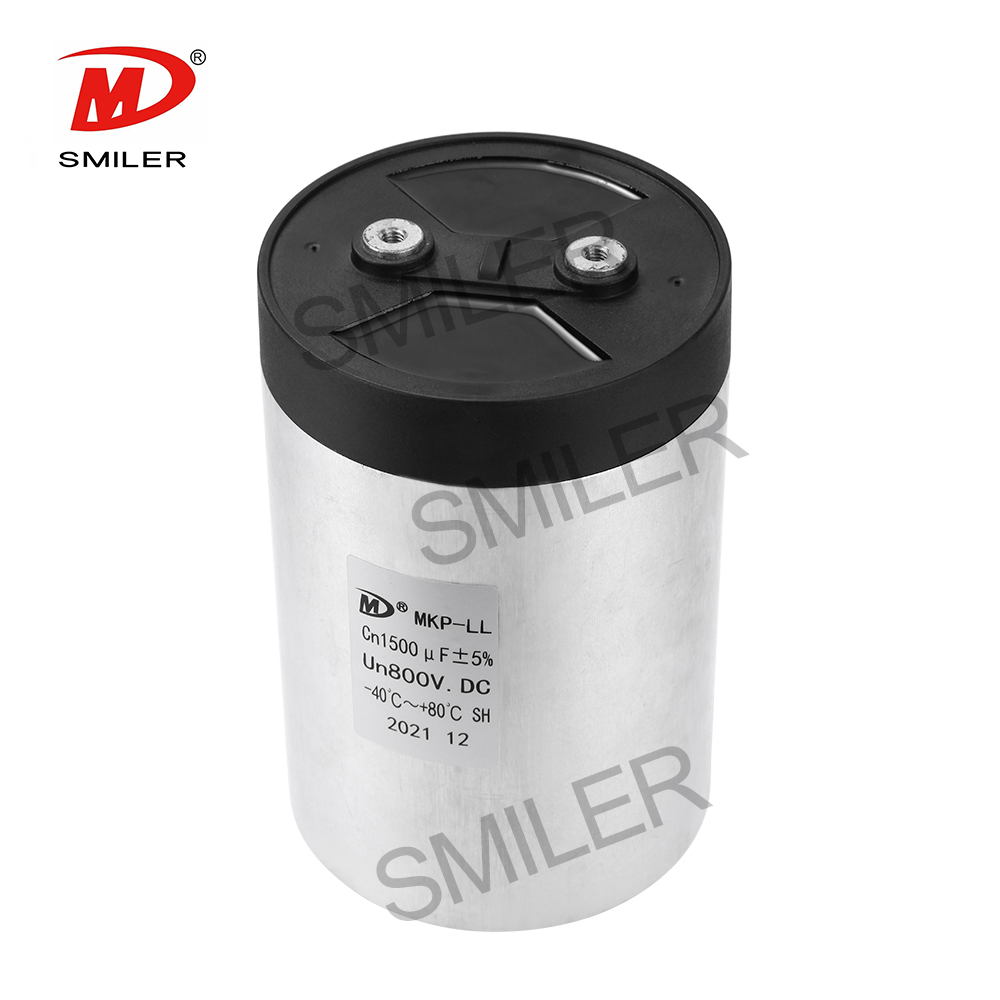

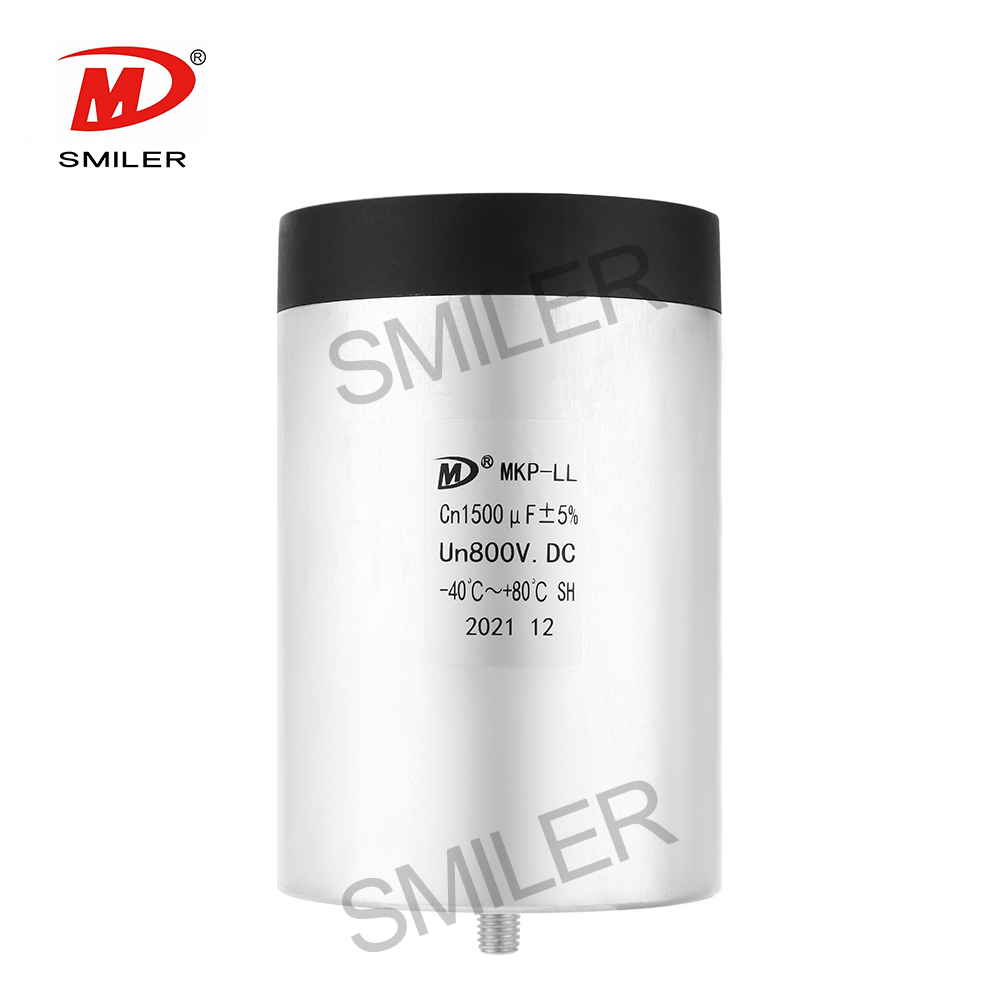

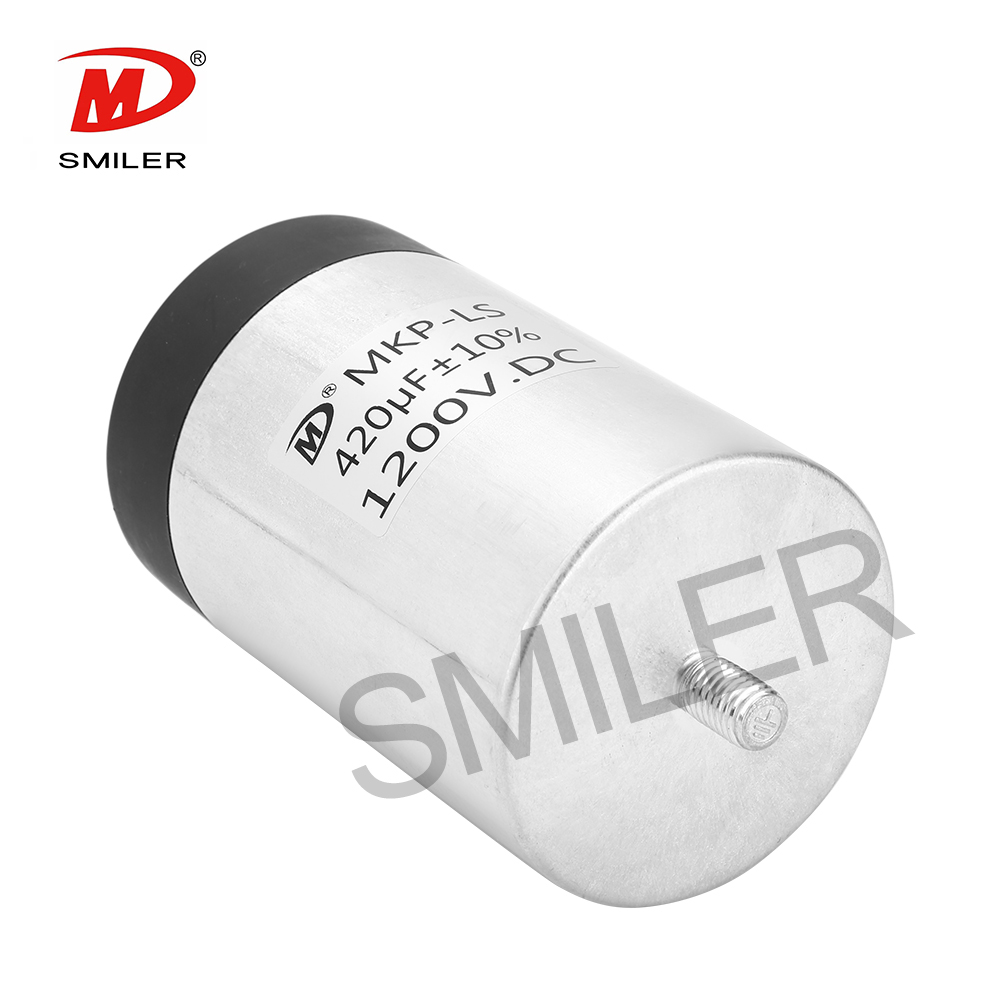

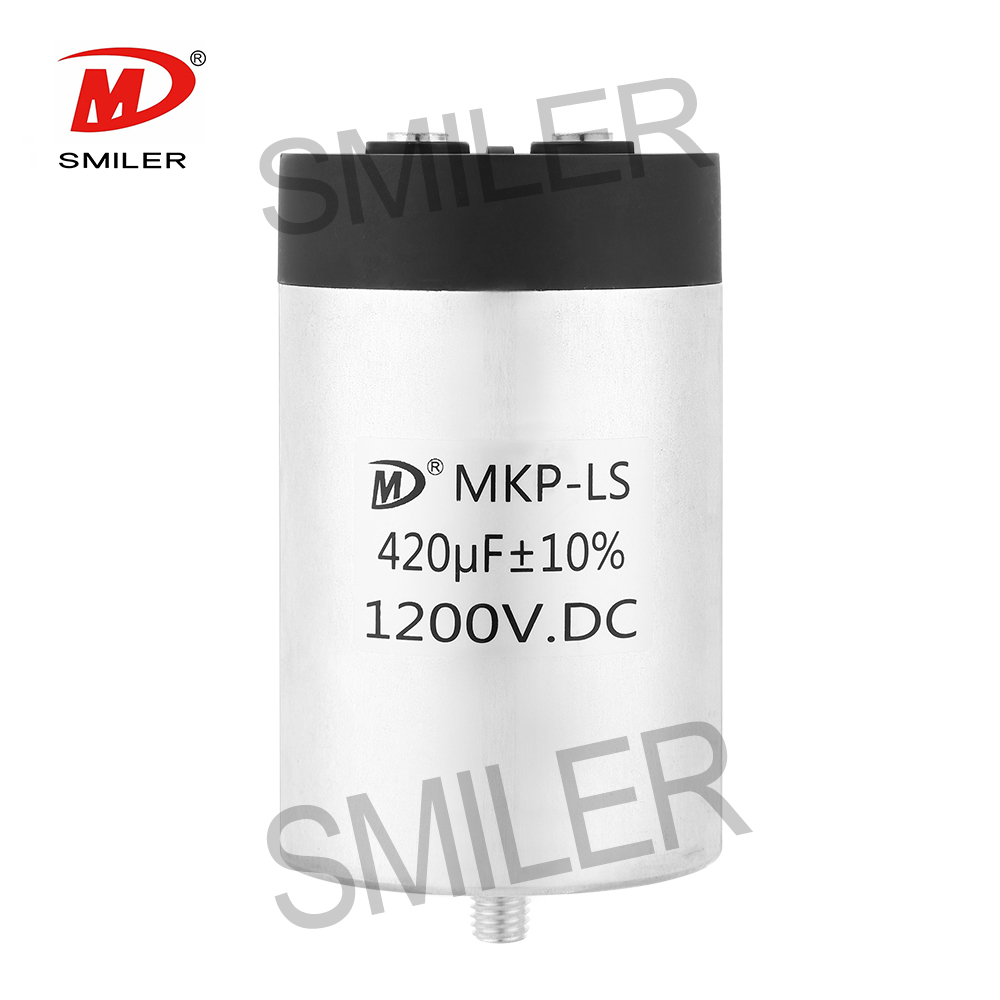

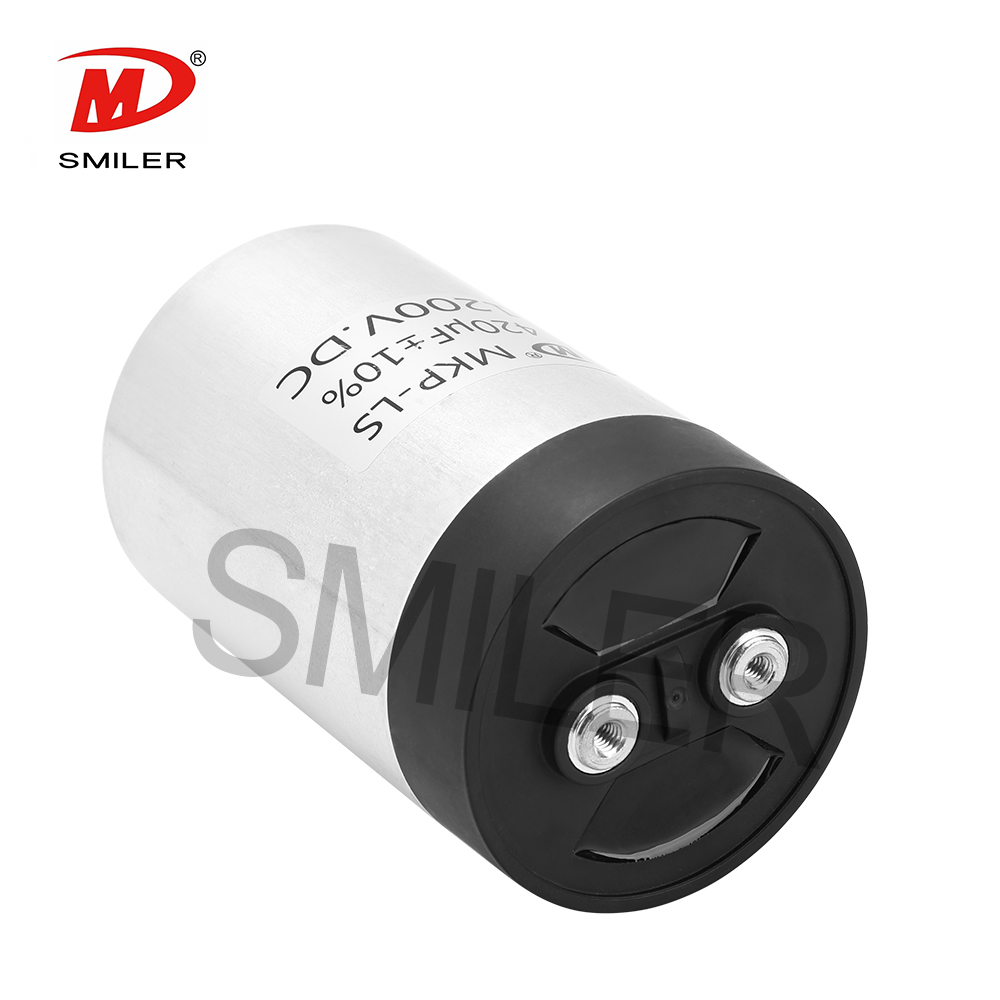

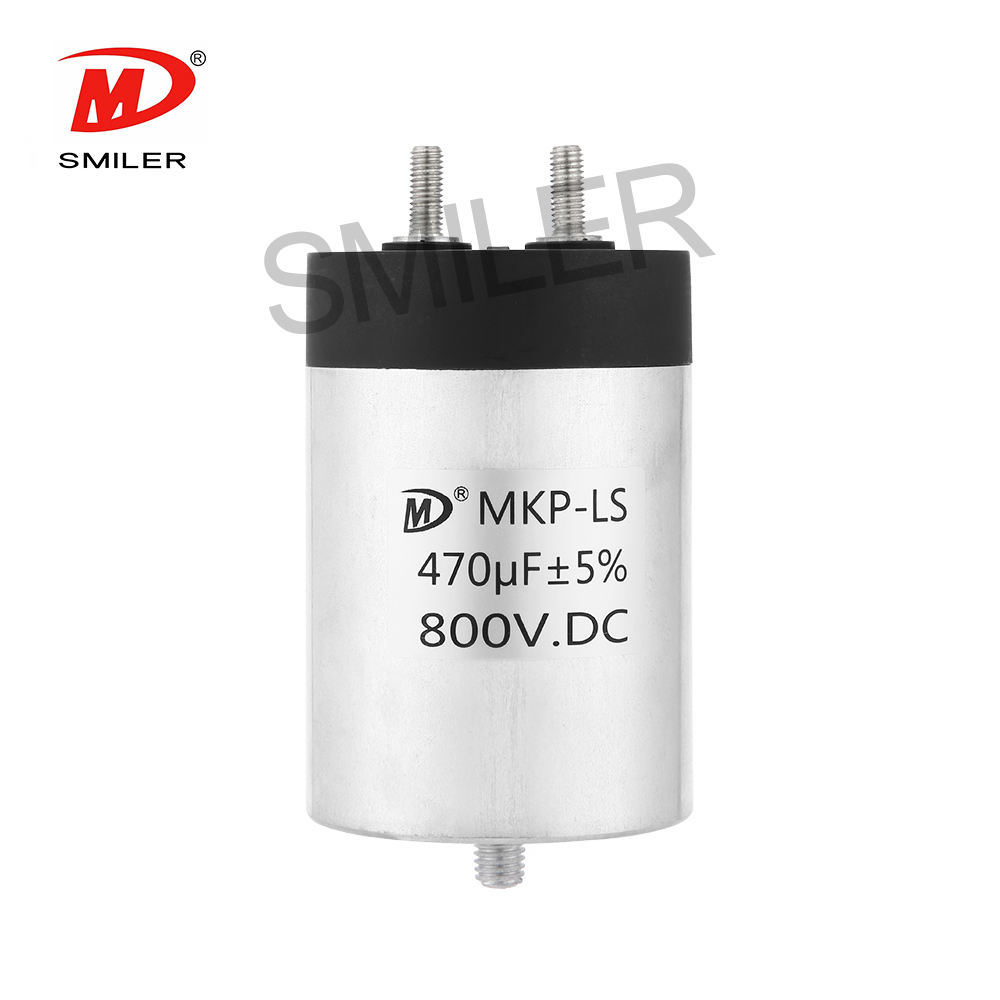

SMiler Film Capacitor Manufacturer

Used in DC-Link circuits, can replace electrolytic capacitor
Low ESR, high ripple current handling capabilities
Low Ls,Self-healing property,Long lifetime

Reference Standard	GB/T 17702 (IEC 61071 )
Climatic Category	D≤116mm： 40/85/56 D = 136mm： 40/80/56
Operating Temperature Range	D≤116mm： -40˚C；~ 85˚C) ( θhs ≤ 85˚C：) D = 136mm： -40˚C； ~ 80˚C； ( θhs ≤ 80˚C；)
Storage temperature range	-40˚C： ~ 85˚C：
Voltage Range	600Vdc ~ 4000Vdc
Capacitance Range	24μF ~ 5600μF
Capacitance Tolerance	±5%(J), ±10%(K)
Test Voltage Between Terminals	1.5Un (10s, 20˚C±5˚C)
Test Voltage Between Terminals And Case	Un < 1 500Vdc, 3 000Vac(10s, 50Hz, 20P ±5˚C：) Un ≥1 500Vdc, (Un+1 000)Vac(10s, 50Hz, 20°C ±5˚C)
tanδd	2x10^-4
IR x Cn	N 5 000s (20P ,500Vdc,1min)
Over Voltage	1.1Un (30% of on-load-dur.)
	1.1 5Un (30min/day)
	1.2Un (5min/day)
	1.3Un (1min/day)
	1.5Un (30ms every time, 1000times during the life of the capacitor)
Max. Altitude	2 000m
Max. Torque of terminals	M6:5N·m M8:6N ·m
Max. Torque of Installation	10N·m
Installation	任意方向Any Position

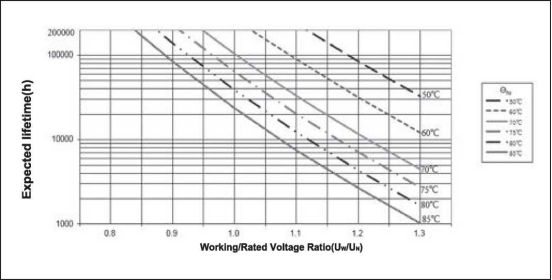

Expected lifetime	100000h @ Un, θhs=70˚C：
Failure rate	50FIT

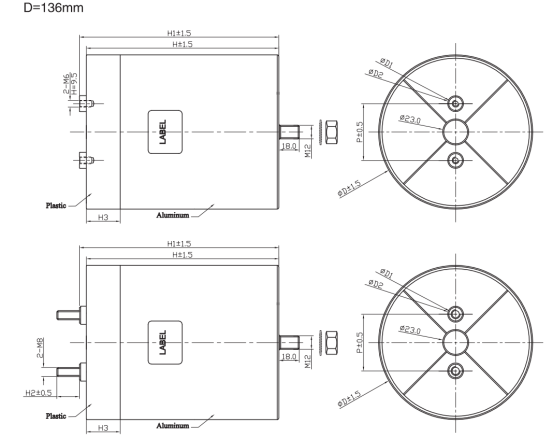

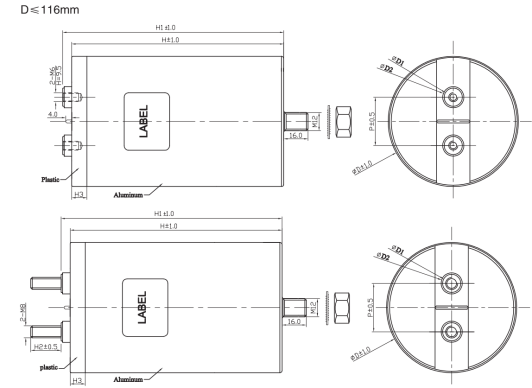

Un (Vdc)	Cn (μF)	ESR @1kHz (mΩ )	L_s (nH)	Rth (K/W)	I (A)	I max(A) (A)			Dimension			Weight (kg)
						40˚C	50˚C	60˚C	OD	H	H1
600	480	1.5	45	5.6	1560	70	65	55	76	95	101	0.60
	650	1.9	50	4.7	1560	70	63	53	76	120	126	0.70
	780	2.2	55	4.6	1550	67	59	50	76	140	146	0.75
	820	1.5	40	4.3	3060	70	70	62	76	155	161	0.90
	950	1.5	45	4.2	3090	70	70	63	76	174	180	1.00
	650	1.2	45	5.1	2120	70	70	64	86	95	101	0.72
	880	1.5	50	4.7	2110	70	70	60	86	120	126	1.00
	1000	1.8	55	4.6	2070	70	65	55	86	136	142	1.10
	2100	0.8	40	3.6	7840	100	100	92	116	158	163	2.00
	2400	0.9	45	3.4	7810	100	100	90	116	174	179	2.20
	3000	0.8	50	2.7	11200	100	100	100	116	230	235	2.80
800	290	1.7	45	5.6	1530	69	61	51	76	95	101	0.60
	400	2.2	50	4.7	1530	66	58	49	76	120	126	0.70
	480	2.5	55	4.6	1560	63	55	47	76	140	146	0.75
	750	1.6	45	4.3	3940	70	70	60	86	174	180	1.30
	1100	1.2	55	3.0	3960	70	70	70	86	252	258	1.80
	1200	0.85	40	3.6	7280	100	100	90	116	158	163	2.00
	1500	1.0	45	3.4	7920	100	100	85	116	174	179	2.20
	1800	0.8	50	2.7	10910	100	100	100	116	230	235	2.80
	3200	0.8	60	2.0	14780	100	100	100	136	295	300	4.90
1000	220	2.2	45	5.6	1460	60	53	45	76	95	101	0.60
	300	2.9	50	4.7	1460	57	51	43	76	120	126	0.70
	360	3.3	55	4.6	1450	54	48	41	76	140	146	0.75
	470	2.2	55	4.6	1980	67	59	50	86	136	142	1.10
	900	0.95	40	3.6	6840	100	100	85	116	158	163	2.00
	1100	1.2	45	3.4	7280	100	92	78	116	174	179	2.20
	1400	0.9	50	2.7	10630	100	100	100	116	230	235	2.80
	2500	0.9	60	2.0	14470	100	100	100	136	295	300	4.90
2000	110	3.5	65	4.5	1830	48	42	35	86	140	146	1.05
	180	1.8	60	3.2	3660	78	69	58	86	225	231	1.65
	180	2.1	60	3.5	3660	70	61	52	116	120	125	1.60
	220	2.3	65	3.3	3660	69	60	51	116	140	145	1.85
	260	1.1	55	2.9	7360	100	93	79	116	174	179	2.30
	360	1.3	60	2.4	7330	100	93	79	116	225	230	2.85
	250	1.8	60	2.9	5090	78	67	55	136	120	125	2.15
	310	2.0	65	2.7	5150	77	66	54	136	140	145	2.45
3000	46	4.6	65	4.6	1570	41	36	30	86	140	146	1.05
	75	2.3	60	3.2	3150	69	61	51	86	225	231	1.65
	74	2.6	60	3.6	3110	62	54	46	116	120	125	1.60
	90	2.9	65	3.3	3090	60	53	45	116	140	145	1.80
	100	1.3	55	3.0	5840	94	83	70	116	174	179	2.35
	140	1.6	60	2.5	5880	93	82	69	116	225	230	2.90
	100	2.2	60	3.0	4200	69	60	49	136	120	125	2.15
4000	24	4.2	65	4.6	1650	42	37	32	86	140	146	1.10
	38	2.1	60	3.3	3230	70	62	53	86	225	231	1.70
	37	2.4	60	3.7	3140	63	55	47	116	120	125	1.65
	46	2.8	65	3.4	3160	61	54	46	116	140	145	1.90
	74	1.5	60	2.5	6290	96	85	72	116	225	230	3.00
	92	1.7	60	2.3	6330	94	83	70	116	265	270	3.45

DC Link MKP-LL
