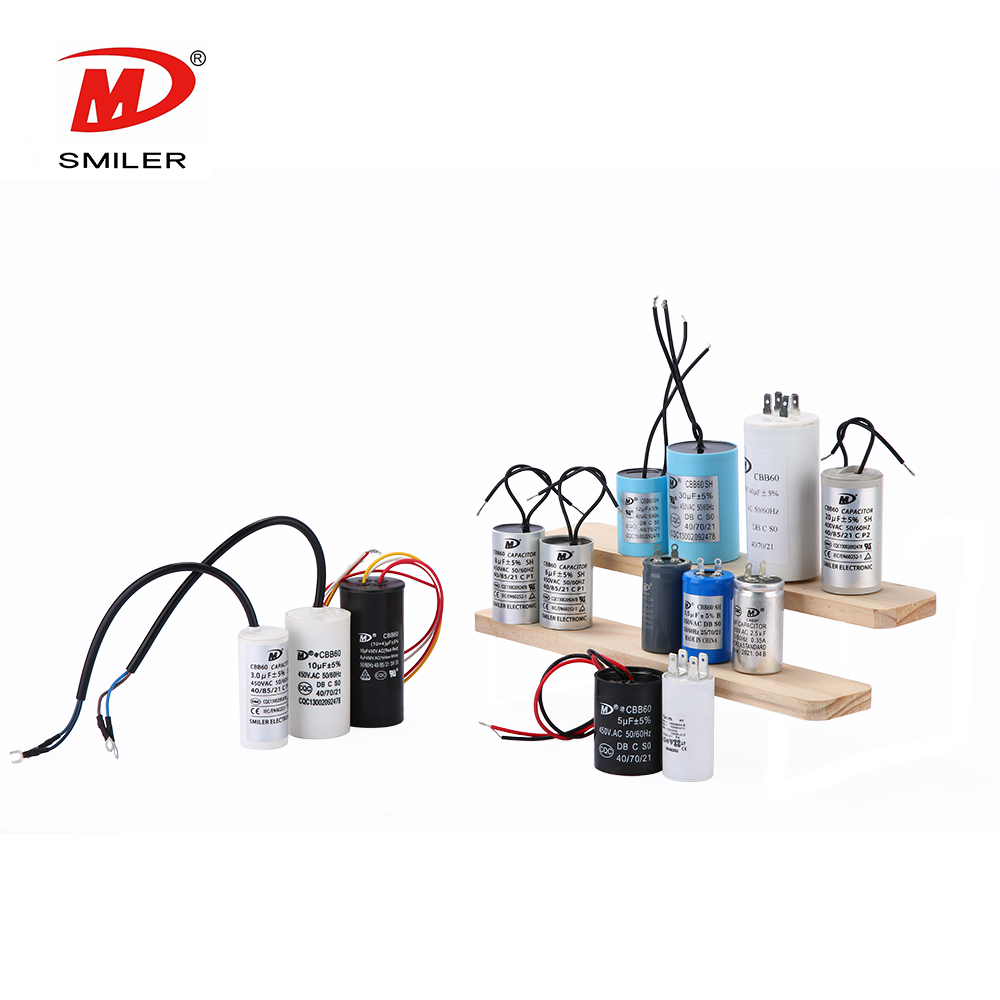

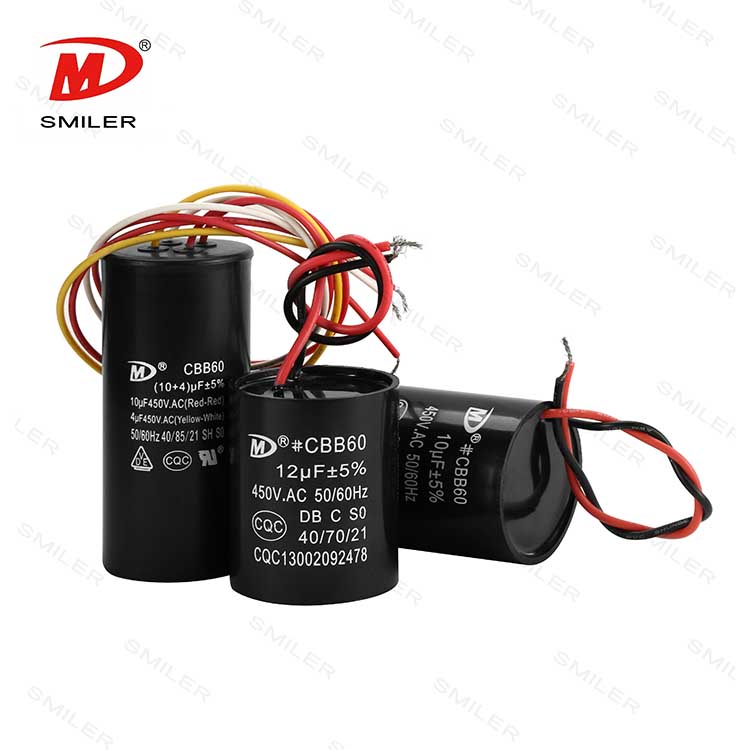

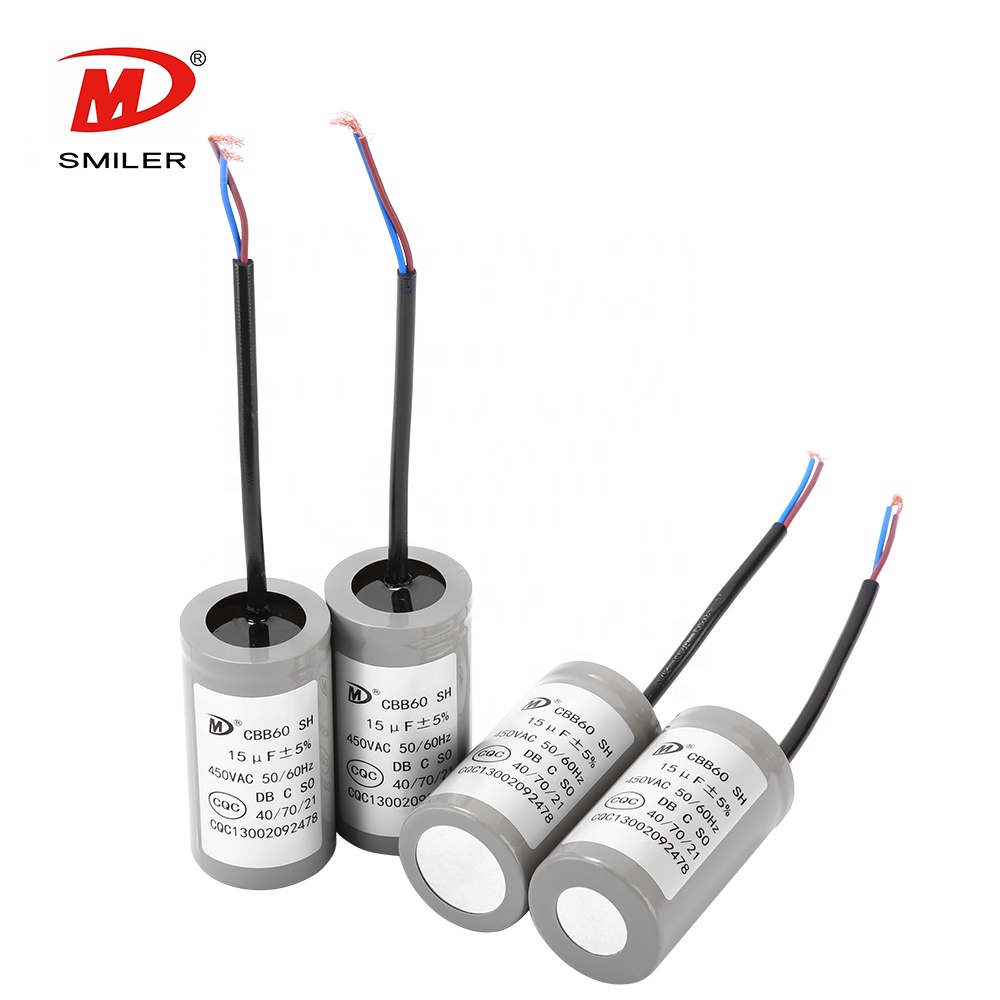

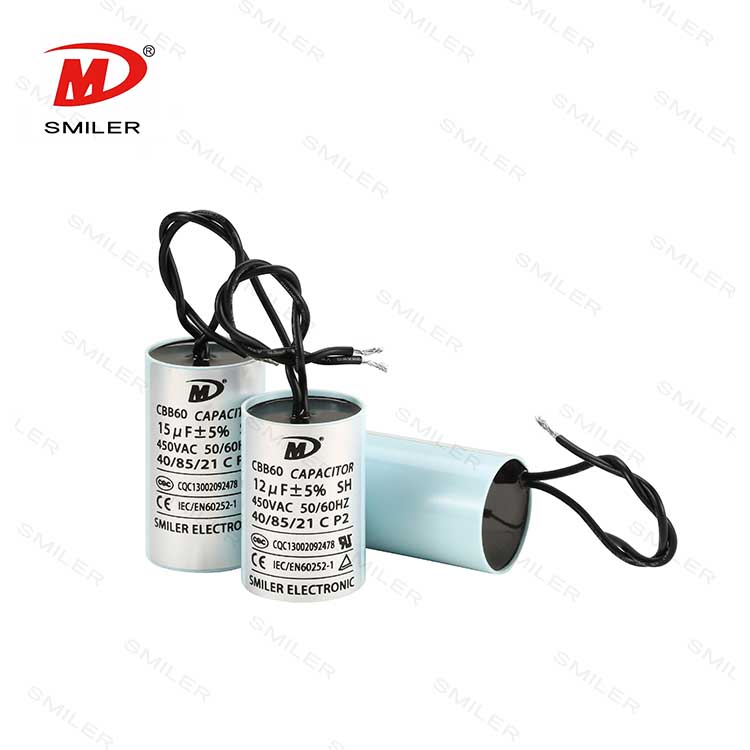

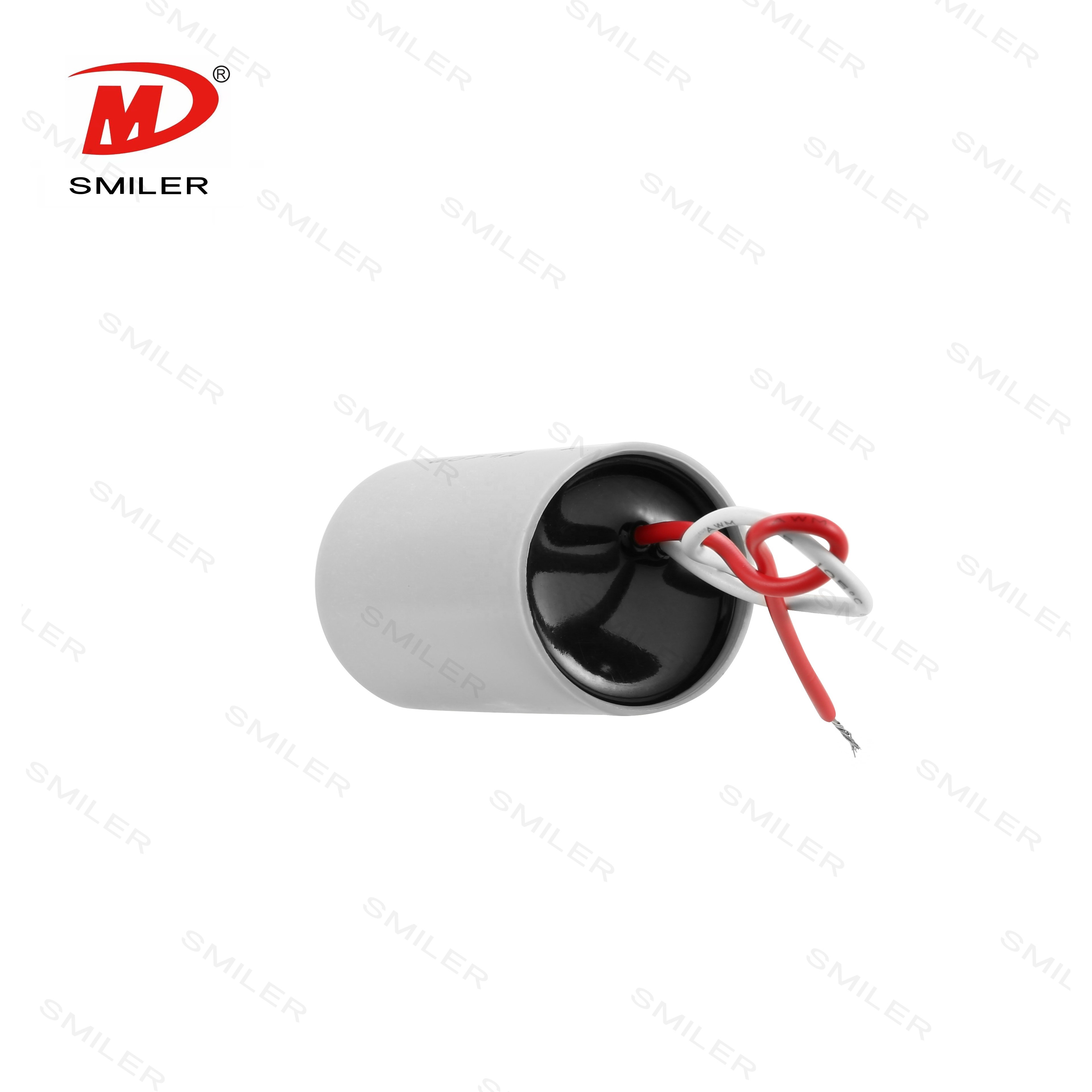

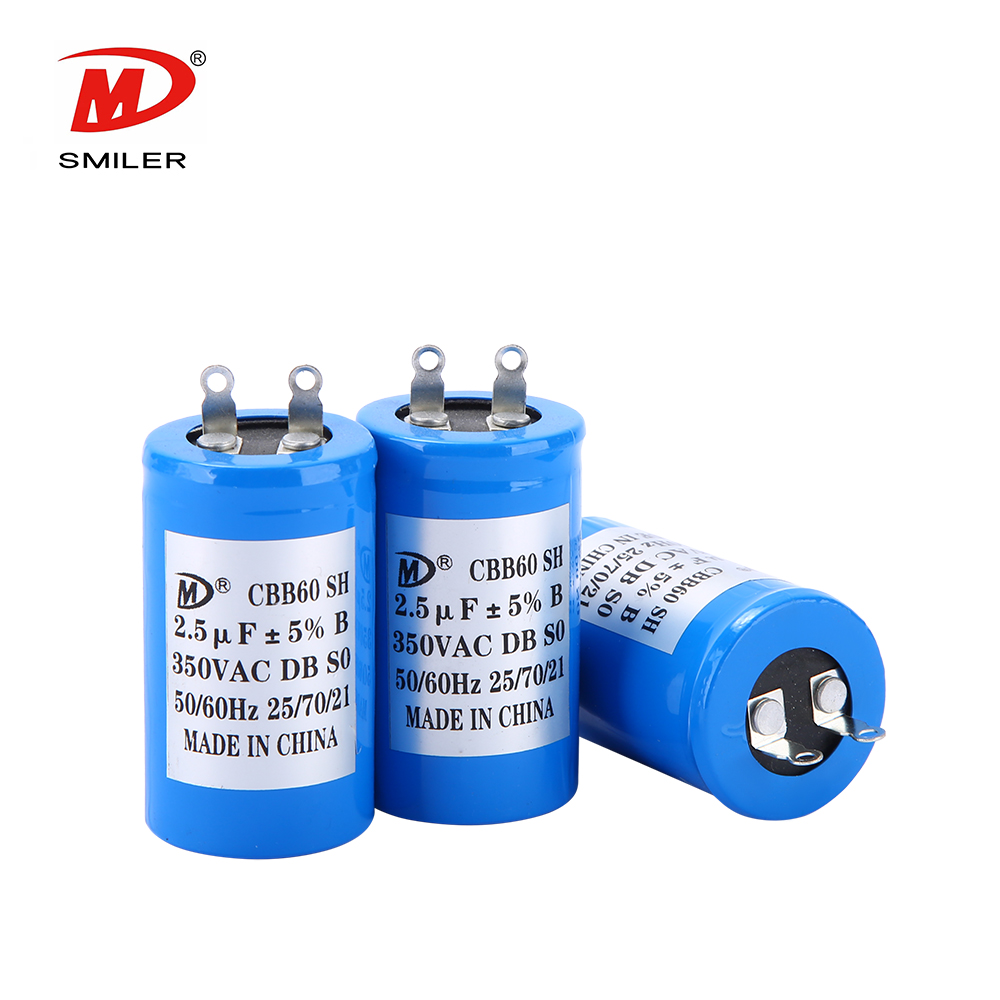

■Product Structure
Medium: metallized polypropylene film
Shell: Plastic or aluminium shell package
Internal potting: resin filling (UL94 V-0)
■Features
Low loss and low internal temperature rise
High reliability,Self-healing property,Long lifetime
■Applications
Washing machine, shutter motor, range hood, paper shredder, water pump and other electrical appliances
Starting and running of various AC motors

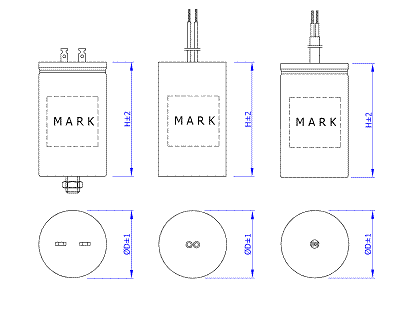

■ Outline Drawing
■ Specifications
Rated voltage（VR)： 110V.AC-600V.AC (50/60Hz) | Steady state over voltage: long-term operation under 1.1Un is allowed |
Capacitance tolerance： ±5%（J）、±10%（K） | Steady state over current: long-term operation under 1.3ln is allowed |
Dissipation factor change ： tgδ≤0.0020(100Hz) | Climatic category： 40/70/21 40/85/21 40/105/21 |
AC test voltage between terminals： 2Un/3s | Operation life time： A(30000h）B(10000h）C(3000h） |
Voltage test terminal to case：2000V.AC 2Un+1000VAC | Safe class： S0-S3 |
Product certification： CQC﹑UL﹑CUL、VDE﹑TUV、CB、CE | Fault current： UL、CUL：10,000AFC ( UL 810) |
■ Technical data ( mm )
Voltage | 250/300VAC | 400VAC | 450VAC | 500VAC | ||||
μF | ФD | H | ФD | H | ФD | H | ФD | H |
1μF | -- | -- | -- | -- | 26 | 40 | 26 | 40 |
2μF | -- | -- | -- | -- | 26 | 40 | 26 | 40 |
3μF | -- | -- | -- | -- | 30 | 50 | 30 | 50 |
4μF | -- | -- | -- | -- | 30 | 50 | 30 | 55 |
5μF | 26 | 40 | 30 | 50 | 30 | 55 | 35 | 55 |
6μF | 26 | 52 | 30 | 55 | 30 | 55 | 35 | 55 |
8μF | 30 | 50 | 30 | 55 | 35 | 55 | 35 | 65 |
10μF | 30 | 55 | 35 | 55 | 35 | 65 | 40 | 65 |
12μF | 35 | 55 | 35 | 65 | 40 | 65 | 40 | 65 |
15μF | 35 | 55 | 35 | 65 | 40 | 65 | 40 | 72.5 |
18μF | 35 | 55 | 40 | 65 | 44 | 65 | 44 | 75 |
20μF | 36 | 65 | 40 | 65 | 44 | 65 | 45 | 75 |
25μF | 40 | 65 | 44 | 65 | 44 | 75 | 50 | 75 |
30μF | 40 | 65 | 44 | 75 | 50 | 75 | 50 | 85 |
35μF | 44 | 65 | 45 | 75 | 50 | 85 | 50 | 95 |
40μF | 44 | 65 | 50 | 75 | 50 | 90 | 50 | 105 |
45μF | 44 | 75 | 50 | 75 | 50 | 95 | -- | -- |
50μF | -- | -- | 85 | 50 | 105 | 50 | -- | -- |
More product sizes and parameters need to be customized
