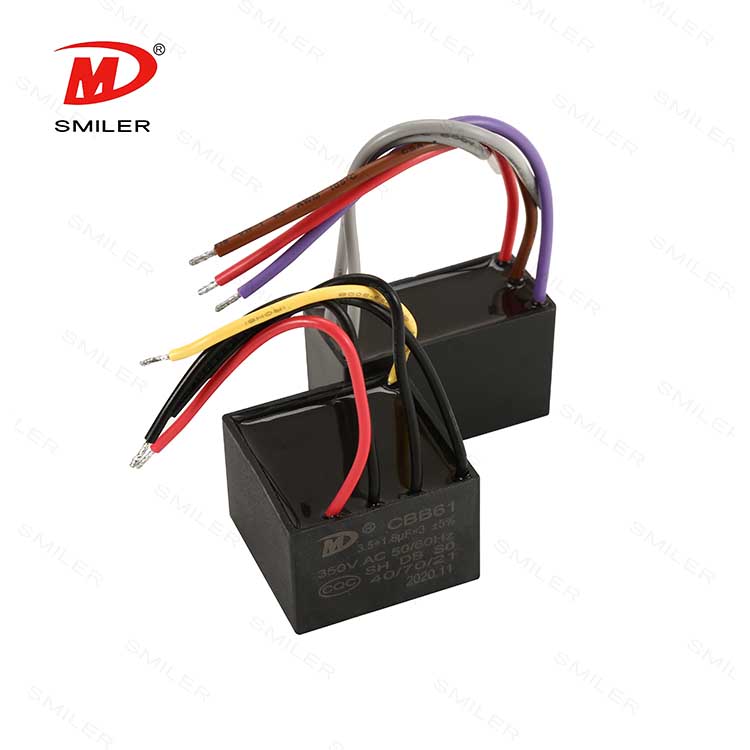

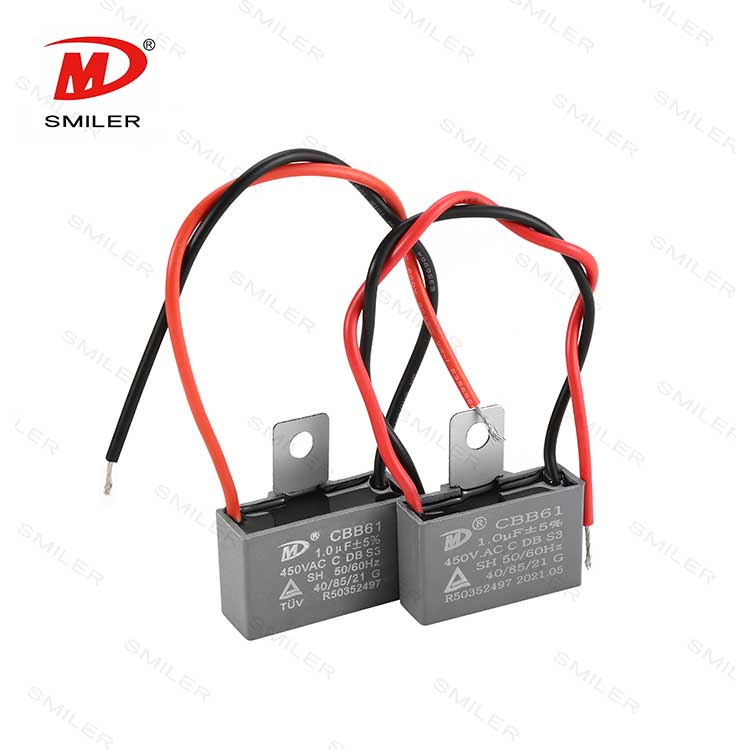

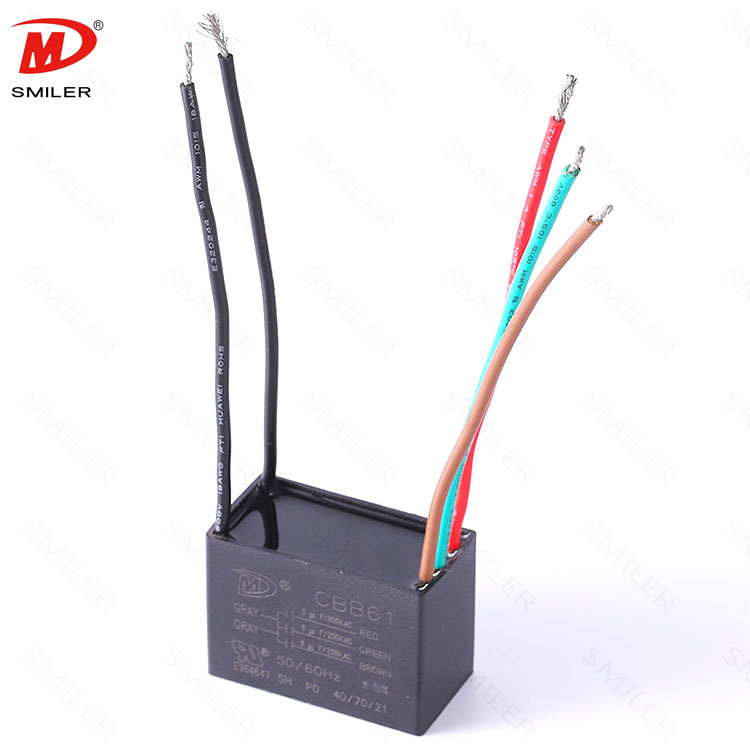

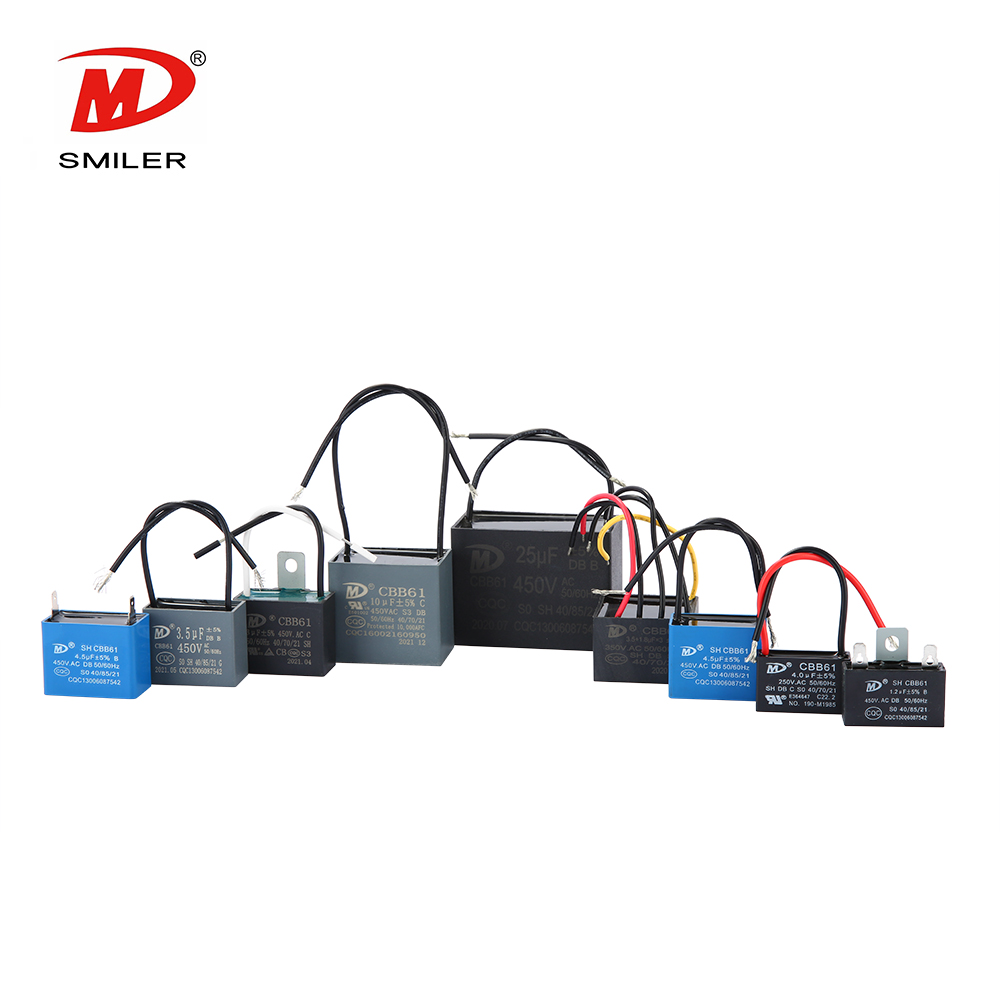

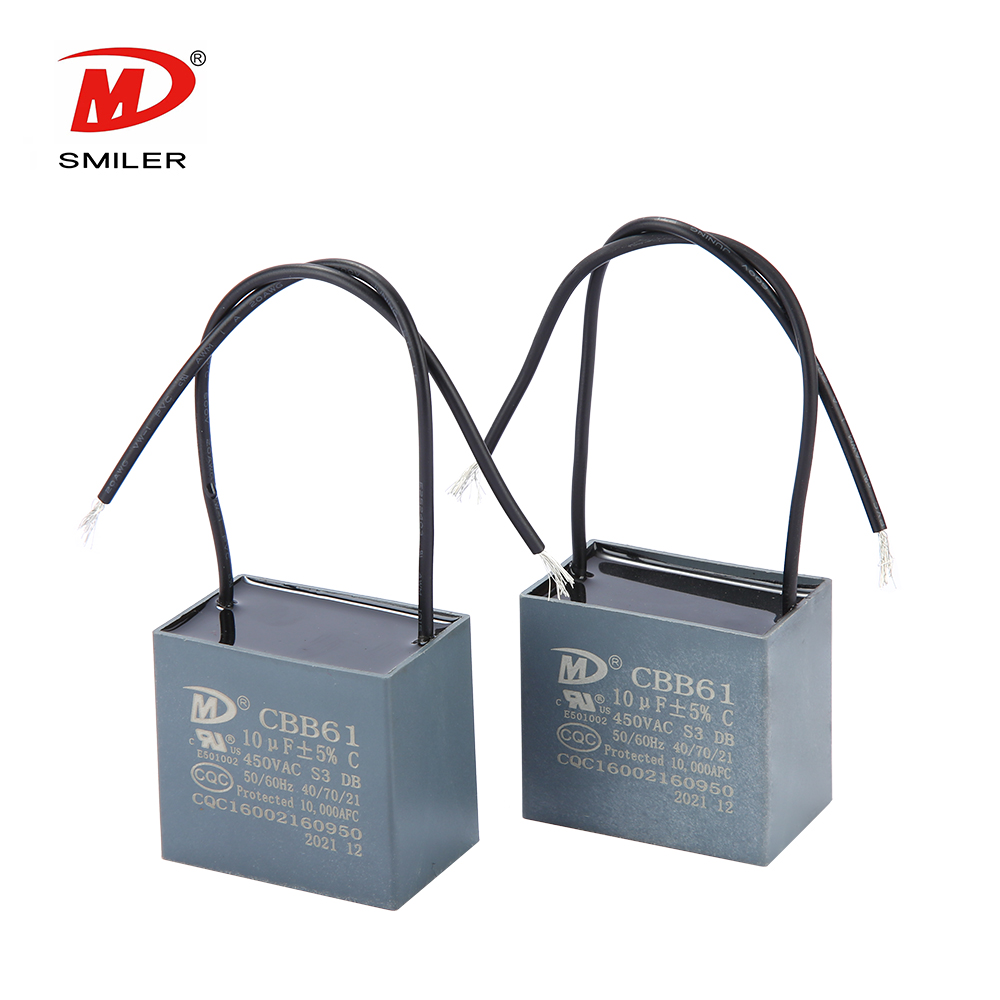

CBB61 Capacitor

Made by winding metalized polypropylene film, with a non sensitive structure and encapsulated in a flame-retardant plastic shell.
Application: Used for starting and running single-phase motors powered by 50/60Hz AC power supply.
Features: High stability, good self-healing ability, high reliability, non inductive structure, high cost-effectiveness

Whatsapp us

■Product Structure

Medium: metallized polypropylene film

Shell: Plastic shell package

Internal potting: resin filling (UL94 V-0)

■Features

Low loss and low internal temperature rise

High reliability,Self-healing property,Long lifetime

■Applications

Fans, ventilators, air purifiers, etc

Starting and running of various AC motors

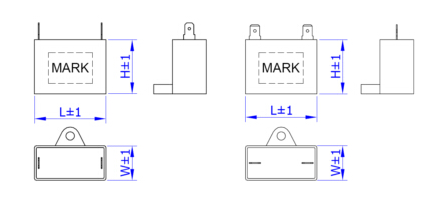

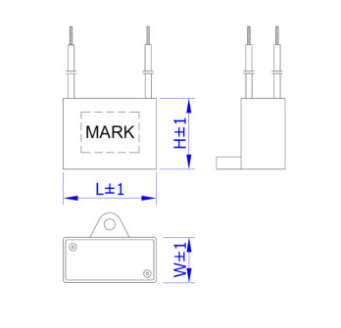

■ Outline Drawing

■ Specifications

Rated voltage（VR)：

110V.AC-600V.AC (50/60Hz)

Steady state over voltage: long-term operation under 1.1Un is allowed

Capacitance tolerance：

±5%（J）、±10%（K）

Steady state over current: long-term operation under 1.3ln is allowed

Dissipation factor change ：

tgδ≤0.0020(100Hz)

Climatic category：

40/70/21 40/85/21 40/105/21

AC test voltage between terminals：

2Un/3s

Operation life time：

A(30000h）B(10000h）C(3000h）

Voltage test terminal to case：2000V.AC 2Un+1000VAC

Safe class：

S0-S3

■ Technical data ( mm )

Rated Cap.	250VAC	300VAC	350VAC	400VAC	450VAC	500VAC	550～600VAC
	L×W×H	L×W×H	L×W×H	L×W×H	L×W×H	L×W×H	L×W×H
0.40μF	——	——	——	——	31×9×17	31×9×19	32×11×21
0.50μF	——	——	——	——	31×9×17	31×9×19	32×11×21
0.56μF	——	——	——	31×9×17	31×9×19	32×10×19.5	32×11×21
0.60μF	——	——	——	31×9×17	32×10×19.5	32×11×21	36×11×22
0.80μF	——	——	31×9×19	32×10×19.5	32×11×21	36×10.5×20	36×12×22
1.0μF	——	31×9×7	32×10×19.5	32×11×21	36×10.5×20	36×11×22	36×12×22
1.2μF	31×9×17	32×10×19.5	32×11×21	36×11×22	36×12×22	36×12.5×24	36×15×25
1.5μF	31×9×19	32×11×21	36×11×22	36×12×22	36×12.5×24	36×15×25	36×16×28
1.8μF	31×10×19	36×10.5×20	36×12×22	36×12.5×24	36×15×25	36×16×28	38×18.5×29
2.0μF	31×10×19	36×11×22	36×12.5×24	37×13.5×24	36×15×25	38×17×28	38×19.5×31
2.2μF	32×11×21	36×11×22	36×12.5×24	37×13.5×24	36×16×28	38×18.5×29	38×19.5×31
2.5μF	32×11×21	36×12×22	36×15×25	36×16×28	38×17×28	38×19.5×31	48×19×28
3.0μF	36×12×22	36×12.5×24	36×16×28	38×17×28	38×19.5×31	47×17×31	47×20×31
3.5μF	36×12×22	36×15×25	38×17×28	38×18.5×29	47×17×28	47×20×31	47×23×32
4.0μF	36×12.5×24	38×14.5×27	38×18.5×29	38×19.5×31	48×19×28	47×20×33	47×23×35
4.5μF	36×12.5×24	36×16×28	38×19.5×31	48×17×28	47×20×31	47×23×35	47×24×37
5.0μF	37×13.5×24	38×17×28	48×17×28	47×17×31	47×20×31	47×23×35	47×27×37
6.0μF	38×16×27	38×18.5×29	38×19.5×31	47×20×31	47×23×35	47×27×37	58×26×38
6.5μF	38×16×27	38×18.5×29	47×19×31	48×22×32	47×23×35	48×28×40	58×26×38
8.0μF	48×17×28	48×19×28	47×23×32	47×23×35	47×27×37	58×23×38	58×30×40
10μF	47×20×31	47×20×33	47×24×37	48×28×40	58×26×38	58V30×40	70×38×52
12μF	48×19×28	47×23×35	48×28×40	58×26×38	58×28×40	58V32×43	70×38×52

More product sizes and parameters need to be customized
