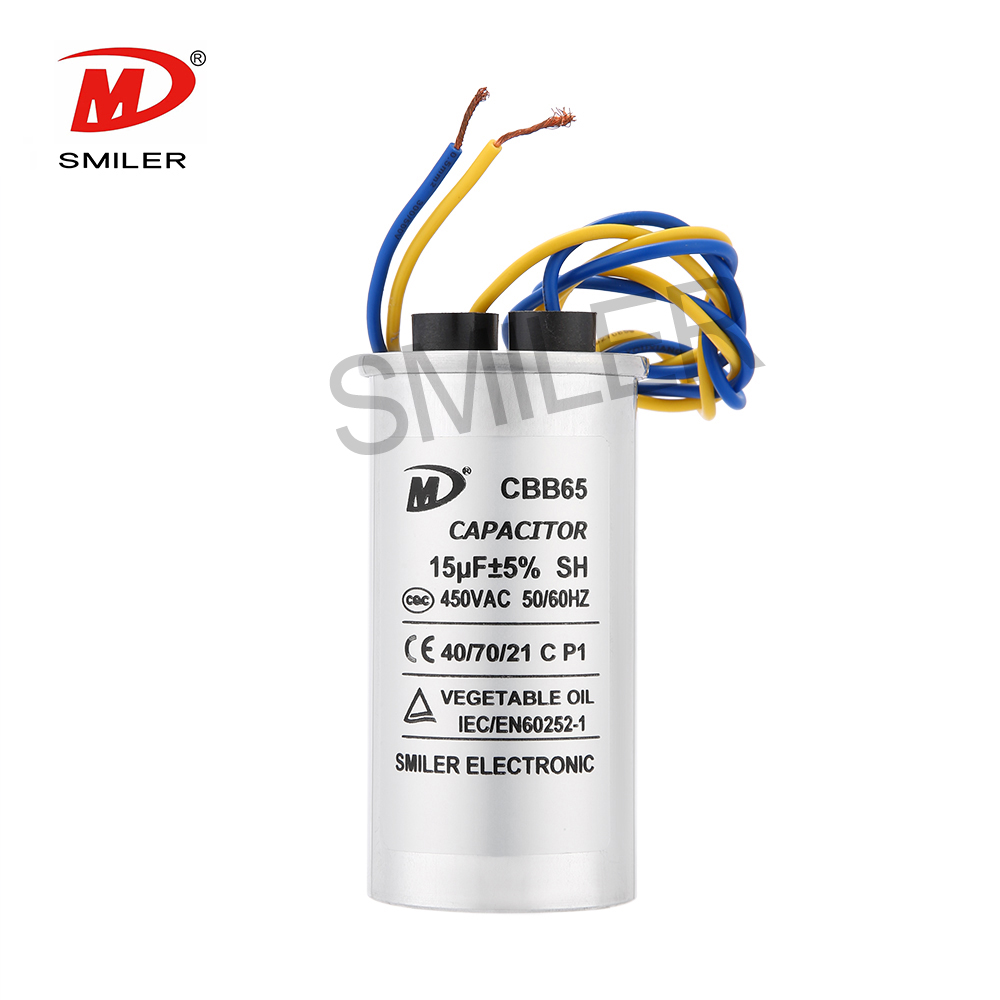

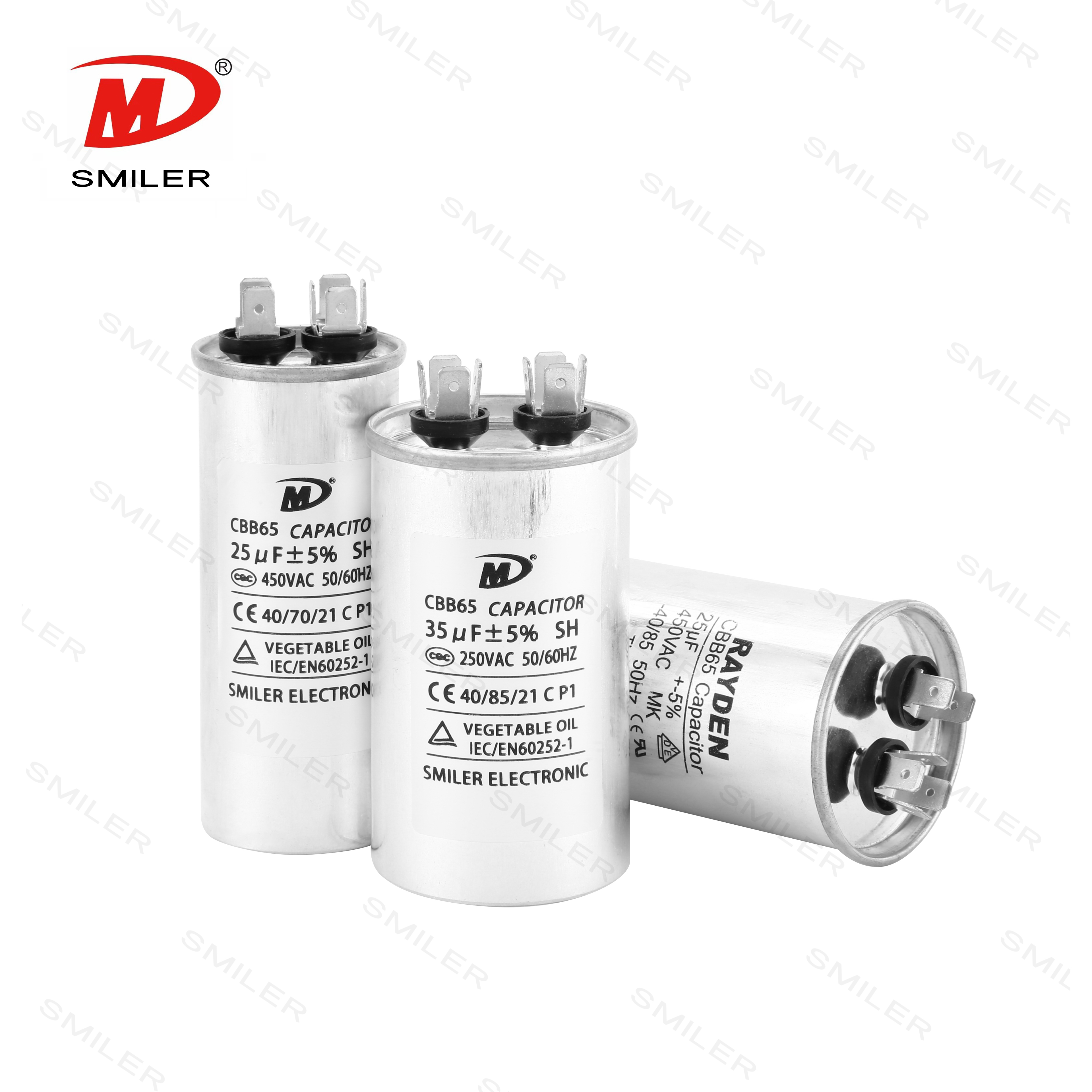

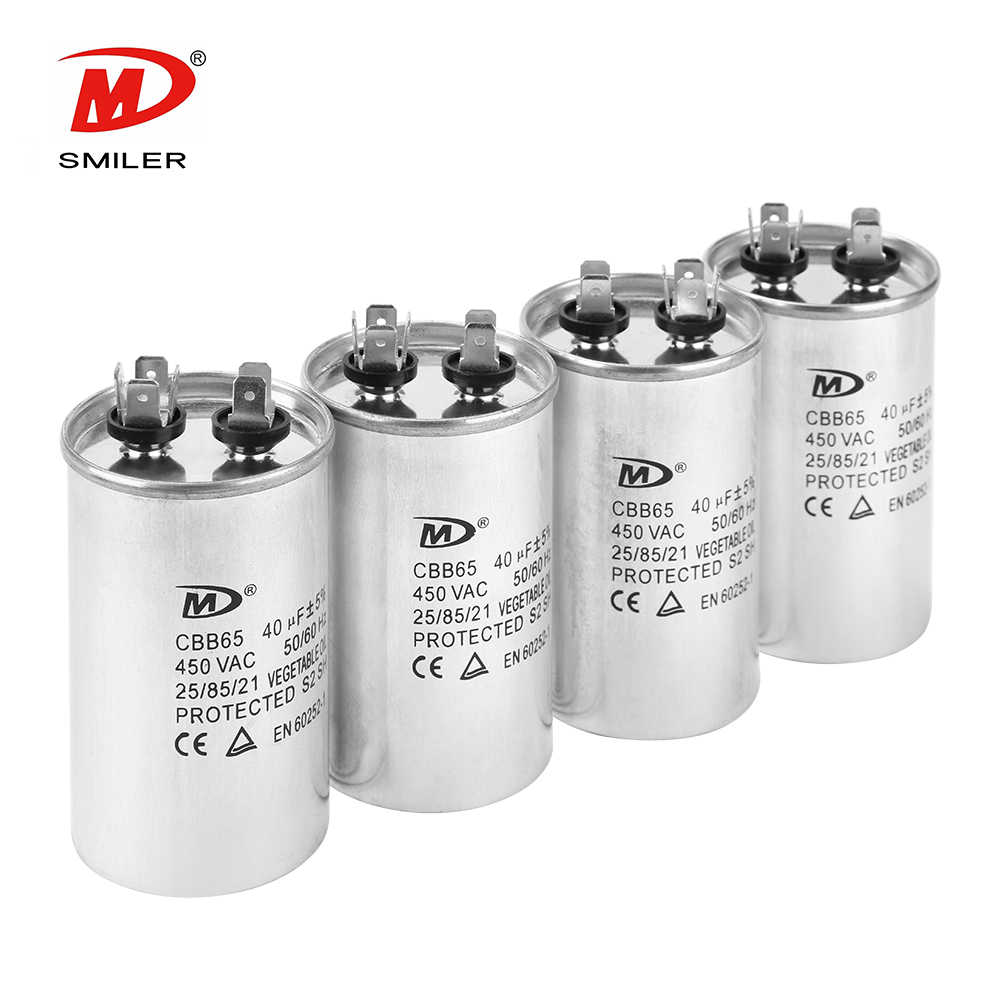

■Product Structure
Medium: metallized polypropylene film
Shell: Aluminium shell package
Internal potting: oil filling
■Features
Low loss and low internal temperature rise
High reliability,Self-healing property,Long lifetime
Stable capacitance, built-in explosion-proof device, safe and reliable use
■Applications
Air conditioner, washing machine, dishwasher, fan and other electrical appliances
Starting and running of various compressors

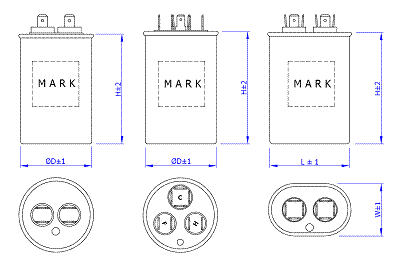

■ Outline Drawing
■ Specifications
Rated voltage（VR)： 110V.AC-600V.AC (50/60Hz) | Steady state over voltage: long-term operation under 1.1Un is allowed |
Capacitance tolerance： ±5%（J）、±10%（K） | Steady state over current: long-term operation under 1.3ln is allowed |
Dissipation factor change ： tgδ≤0.0025(100Hz) | Climatic category： 40/70/21 40/85/21 |
AC test voltage between terminals： 2Un/5s | Operation life time： A(30000h）B(10000h）C(3000h） |
Voltage test terminal to case：2000V.AC 2Un+1000VAC | Safe class： P2 |
Product certification： CQC﹑UL﹑CUL、VDE |
■ Technical data ( mm )
Rated Cap. | 250/300VAC | 400/450 VAC | ||||
Cylindrial圆柱形 | Oval椭圆形 | Cylindrial圆柱形 | Oval椭圆形 | |||
D | H | L×W×H | D | H | L×W×H | |
10μF | 40 | 55 | 51.5×31.5×65 | 40 | 65 | 51.5×31.5×65 |
15μF | 40 | 55 | 51.5×31.5×65 | 40 | 65 | 51.5×31.5×65 |
20μF | 40 | 65 | 51.5×31.5×75 | 40 | 75 | 51.5×31.5×75 |
25μF | 40 | 65 | 51.5×31.5×75 | 45 | 85 | 51.5×31.5×85 |
30μF | 40 | 75 | 71.5×45×65 | 45 | 95 | 71.5×45×75 |
35μF | 40 | 75 | 71.5×45×65 | 50 | 95 | 71.5×45×85 |
40μF | 45 | 75 | 71.5×45×75 | 50 | 95 | 71.5×45×85 |
50μF | 45 | 85 | 71.5×45×85 | 50 | 115 | 71.5×45×100 |
60μF | 45 | 95 | 71.5×45×100 | 50 | 125 | 71.5×45×100 |
30+5μF | -- | -- | ---- | 50 | 100 | ---- |
35+5μF | -- | -- | ---- | 50 | 100 | ---- |
40+5μF | -- | -- | ---- | 50 | 110 | ---- |
45+5μF | -- | -- | ---- | 50 | 120 | ---- |
50+5μF | -- | -- | ---- | 50 | 120 | ---- |
55+5μF | -- | -- | ---- | 55 | 125 | ---- |
60+5μF | -- | -- | ---- | 60 | 110 | ---- |
More product sizes and parameters need to be customized
