Large capacitance,small size
Excellent over voltage and over current capability
High reliability,Self-healing property,Long lifetime

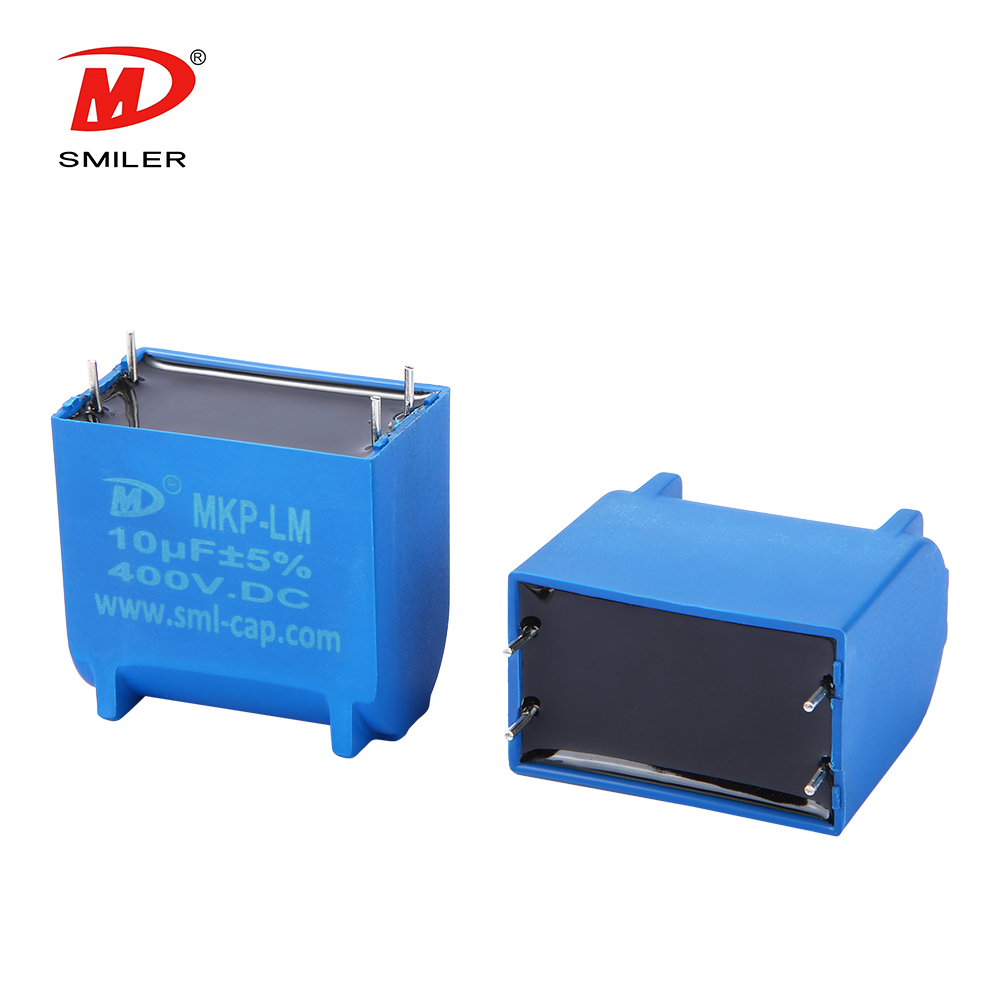

■Product Structure
Medium: metallized polypropylene film
Shell: Plastic shell package
Internal potting: resin filling (UL94 V-0)
■Features
Good High humidity resistance
Large capacitance,small size
Excellent over voltage and over current capability
High reliability,Self-healing property,Long lifetime
■Applications
Frequency converters
Industrial and high-end power supplies
Automobile DC-DC and Solar inverters
■Outline Drawing
■ Specifications
Reference standard | GB/T 17702-2021(IEC 61071:2007 )； IEC 60068 |
Climatic category | 40/105/56 |
Operating temperature range (case) | Max. operating temperature, Top +105℃ Lower category temperature Tmin -40℃ |
For temperatures between 85 °C and 105 °C | 1.33%/°C of Vop derating compared to VR at 85 °C |
Ratedvoltage（VR)85℃ | 500VDC/600VDC/800VDC/900VDC/1000VDC 1100VDC/1200VDC |
J(±5%） K(±10%） | |
DC test voltage between terminals (10 s) | 1.5*VR |
Voltage test terminal to case (10 s) | 2100 V AC, 50 Hz |
Insulation Resistance | > 10 000 s ( 20℃，100vdc，1min) |
Maximum peak current | IP=C*dV/dT |
Operation life time | 50 000 h at VR and 85℃ |
Biased humidity test
Performance requirements | 1000 hours / 85°C / 85% relative humidity with VR
Capacitance change ∣ΔC/C∣ ≤ 10% Dissipation factor change δ tan ä ≤ 0.025 (at 10 kHz) Insulation resistance Rins ≥ 50% of initial limit |
■Expected Lifetime curve
■ Technical data ( mm )
VR=500Vdc at 85℃ | |||||||||||
C (uF) |
W ±1 |
H ±1 |
T ±1 |
P ±0.5 |
P2 ±0.5 |
d ±0.05 |
dV/dt (V/us) | Tgδ*10-4 | ESR@10 kHz (mΩ) | Irms(A)@85℃10kHz | |
1kHz | 10kHz | ||||||||||
5 | 32.0 | 21.0 | 11.0 | 27.5 | - | 0.8 | 30 | 12 | 120 | 25 | 3.0 |
10 | 32.0 | 24.5 | 15.0 | 27.5 | - | 0.8 | 30 | 12 | 120 | 7.5 | 6.5 |
22 | 32.0 | 36.5 | 22.0 | 27.5 | - | 1.0 | 30 | 12 | 120 | 5.0 | 10.0 |
30 | 42.0 | 40.0 | 20.0 | 37.5 | 10.2 | 1.0 | 21 | 22 | 220 | 8.0 | 12.5 |
35 | 42.0 | 36.0 | 24.0 | 37.5 | 10.2 | 1.0 | 21 | 22 | 230 | 8.0 | 13.5 |
45 | 42.0 | 38.0 | 28.0 | 37.5 | 10.2 | 1.0 | 21 | 25 | 250 | 6.0 | 14.5 |
55 | 42.0 | 45.0 | 30.0 | 37.5 | 20.3 | 1.2 | 21 | 25 | 250 | 5.0 | 16.0 |
60 | 42.0 | 50.0 | 33.0 | 37.5 | 20.3 | 1.2 | 21 | 25 | 250 | 4.5 | 16.5 |
80 | 57.5 | 45.0 | 30.0 | 52.5 | 20.3 | 1.2 | 15 | 35 | 350 | 4.0 | 17.0 |
110 | 57.5 | 50.0 | 35.0 | 52.5 | 20.3 | 1.2 | 15 | 35 | 350 | 3.5 | 18.0 |
VR=600Vdc at 85℃ | |||||||||||
C (uF) |
W ±1 |
H ±1 |
T ±1 |
P ±0.5 |
P2 ±0.5 |
d ±0.05 |
dV/dt V/us） | Tgδ*10-4 | ESR@10 kHz (mΩ） | Irms(A)@85℃10kHz | |
1kHz | 10kHz | ||||||||||
2 | 32.0 | 18.0 | 9.0 | 27.5 | - | 0.8 | 30 | 11 | 100 | 45.0 | 3.0 |
4 | 32.0 | 21.0 | 11.0 | 27.5 | - | 0.8 | 30 | 11 | 100 | 24.0 | 5.5 |
6 | 32.0 | 24.5 | 15.0 | 27.5 | - | 0.8 | 30 | 11 | 100 | 18.5 | 7.5 |
10 | 32.0 | 30.0 | 16.0 | 27.5 | - | 1.0 | 30 | 11 | 100 | 15.5 | 11.0 |
18 | 32.0 | 37.0 | 22.0 | 27.5 | - | 1.0 | 30 | 11 | 100 | 8.5 | 15.0 |
12 | 41.0 | 30.0 | 16.0 | 37.5 | - | 1.0 | 22 | 20 | 180 | 16.5 | 7.0 |
15 | 41.0 | 32.0 | 17.0 | 37.5 | - | 1.0 | 22 | 20 | 180 | 13.0 | 9.0 |
20 | 42.0 | 40.0 | 20.0 | 37.5 | 10.2 | 1.0 | 22 | 20 | 180 | 10.0 | 12.5 |
25 | 42.0 | 40.0 | 20.0 | 37.5 | 10.2 | 1.0 | 22 | 20 | 180 | 8.0 | 15.5 |
30 | 42.0 | 44.0 | 24.0 | 37.5 | 10.2 | 1.0 | 22 | 20 | 180 | 6.5 | 17.5 |
35 | 42.0 | 45.0 | 30.0 | 37.5 | 20.3 | 1.2 | 22 | 25 | 200 | 6.0 | 20.0 |
40 | 42.0 | 45.0 | 30.0 | 37.5 | 20.3 | 1.2 | 22 | 25 | 200 | 5.5 | 22.0 |
50 | 42.0 | 46.0 | 35.0 | 37.5 | 20.3 | 1.2 | 22 | 25 | 200 | 4.5 | 25.0 |
55 | 42.0 | 50.0 | 35.0 | 37.5 | 20.3 | 1.2 | 22 | 25 | 200 | 3.5 | 27.0 |
60 | 57.5 | 45.0 | 30.0 | 52.5 | 20.3 | 1.2 | 22 | 30 | 360 | 4.0 | 22.0 |
80 | 57.5 | 50.0 | 35.0 | 52.5 | 20.3 | 1.2 | 15 | 30 | 360 | 3.5 | 27.0 |
110 | 57.5 | 55.0 | 45.0 | 52.5 | 20.3 | 1.2 | 15 | 30 | 360 | 3.0 | 29.0 |
