Climatic category

40/85/56

Operating temperature range (case)

Max. operating temperature,

Lower category temperature Tmin -40℃

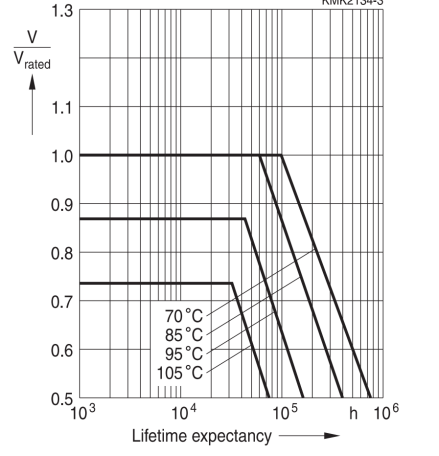

For temperatures between 85 °C and 105 °C

1.33%/°C of Vop derating compared to VR at 85 °C

Rated voltage（VR)85℃

500VDC/600VDC/800VDC/900VDC/1000VDC 1100VDC/1400VDC

Capacitance tolerance

J(±5%） K(±10%）

DC test voltage between terminals (10 s)

1.5*VR

Voltage test terminal to case (10 s)

3000 V AC, 50 Hz

Insulation Resistance

> 10 000 s ( 20℃，100vdc，1min)

Maximum peak current

IP=C*dV/dT

Operation life time

50 000 h at VR and 85℃

Biased humidity test

1000 hours / 60 °C / 95% relative humidity with VR

Performance requirements

Capacitance change ∣ΔC/C∣ ≤ 5%

Dissipation factor change Δ tan δ ≤ 0.025 (at 10 kHz)

Insulation resistance Rins ≥ 50% of initial limit

C (uF)

Un (V)

Imax.

(A)

dV/dt (V/us)

Ls (nH)

Ut-t (V)

Ut-c (V)

Tgδ*10-4

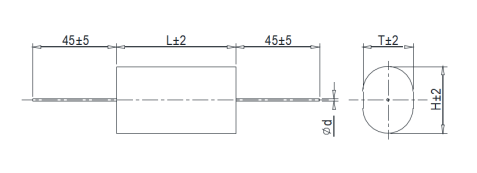

Size

10kHz

(mm)

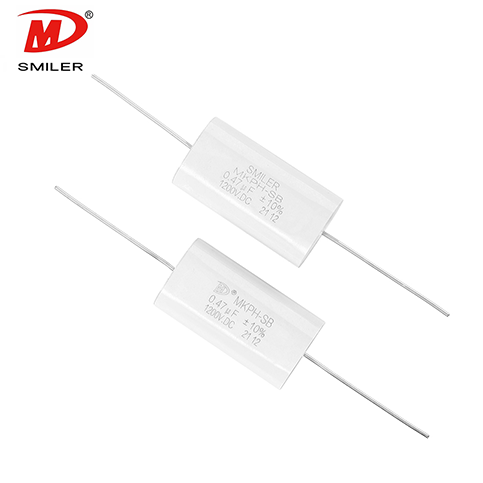

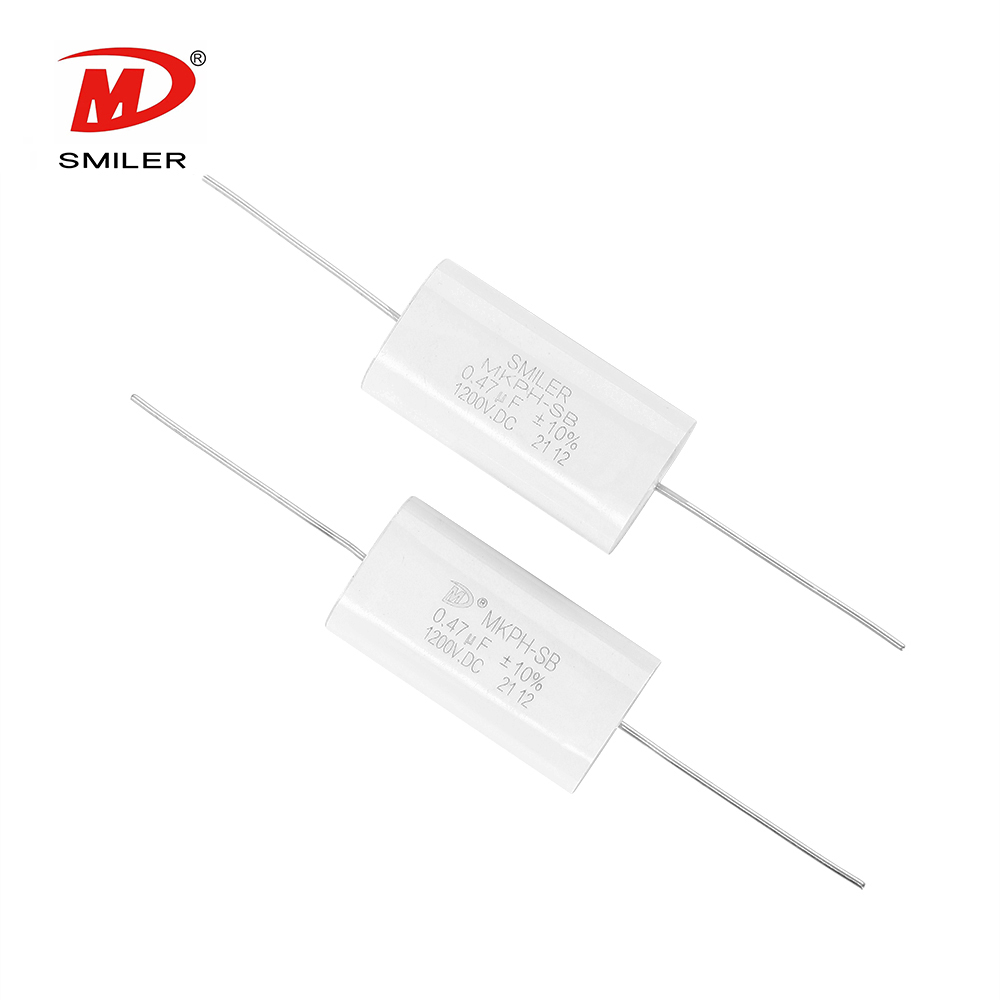

0.47

1200VDC

7

1200

≤10

1800V,10S

3000VAC,60S

≤10

46*18*34

1

1200VDC

15

1200

≤10

1800V,10S

3000VAC,60S

≤10

46*34*36

2

1200VDC

25

1200

≤10

1800V,10S

3000VAC,60S

≤10

50*46*50

3

1200VDC

35

1200

≤10

1800V,10S

3000VAC,60S

≤10

50*46*50

30

1200VDC

30

200

≤10

1800V,10S

3000VAC,60S

≤10

74*46*49

40

1200VDC

40

200

≤10

1800V,10S

3000VAC,60S

≤10

74*46*49

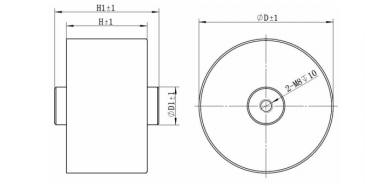

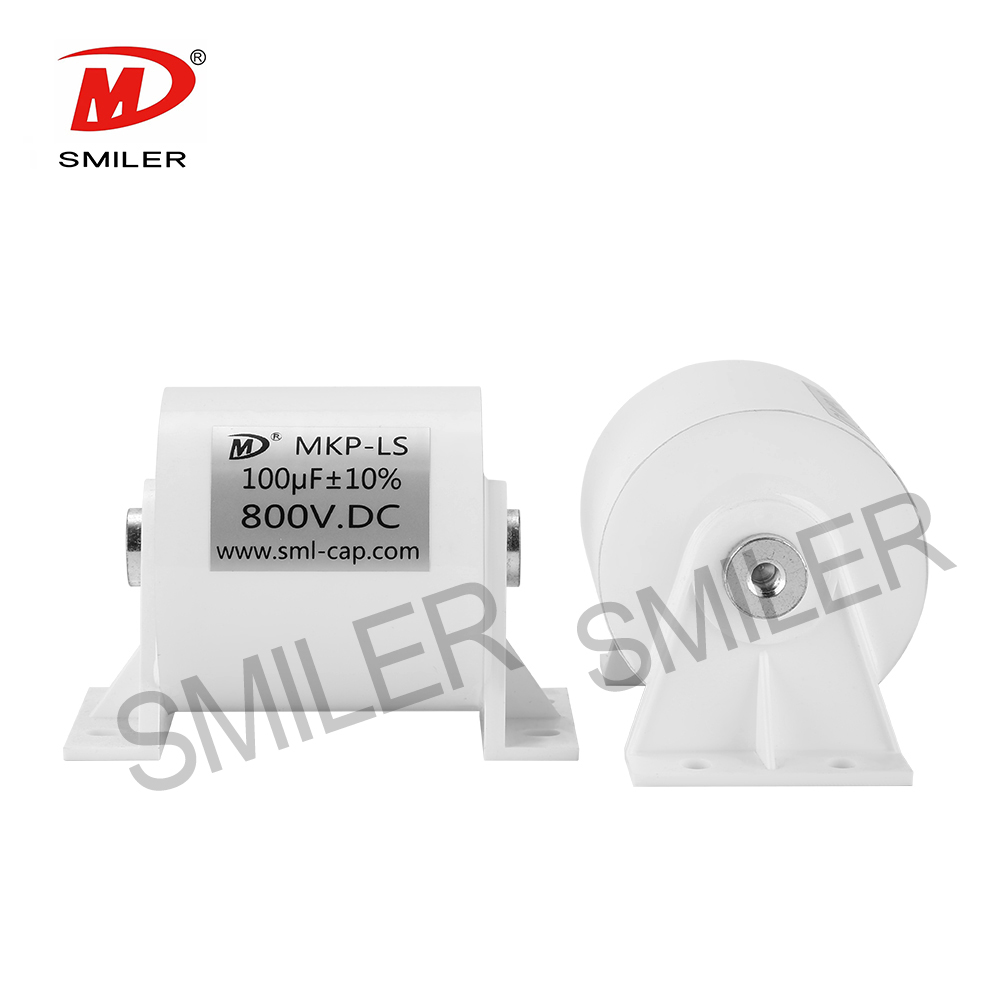

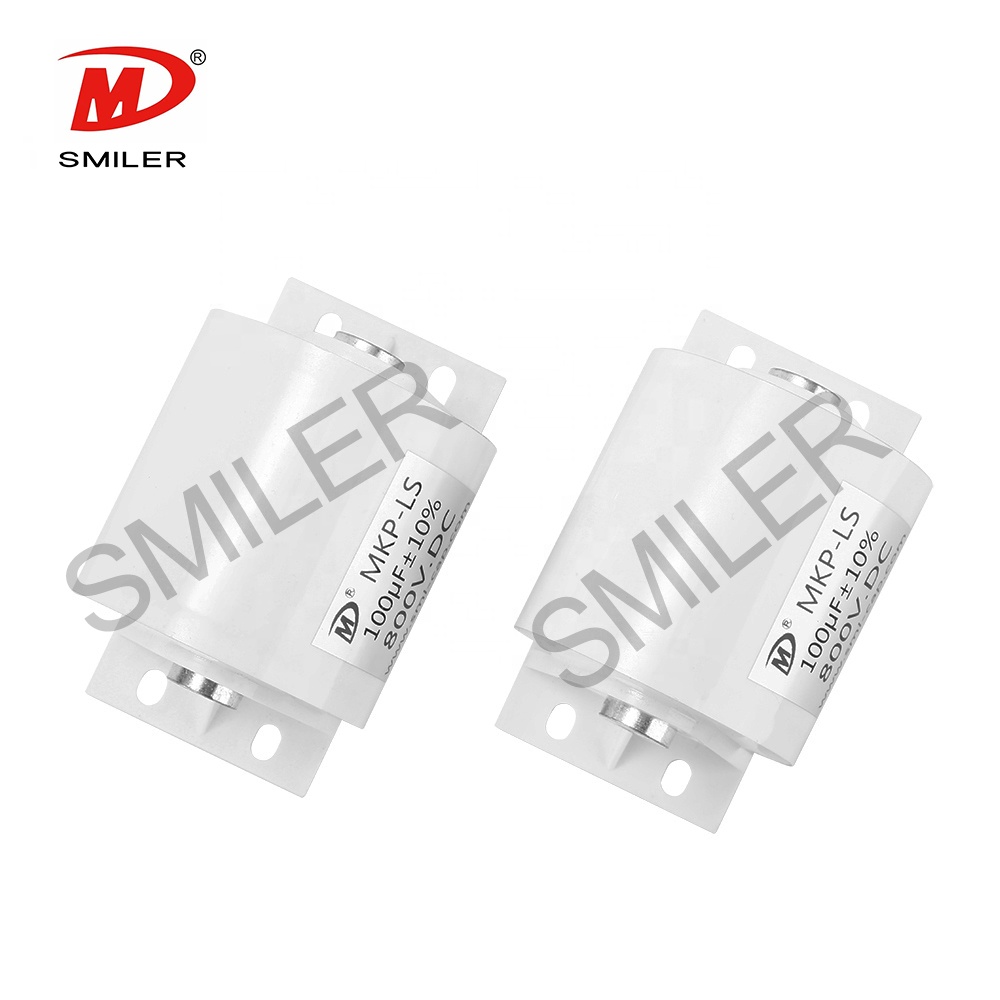

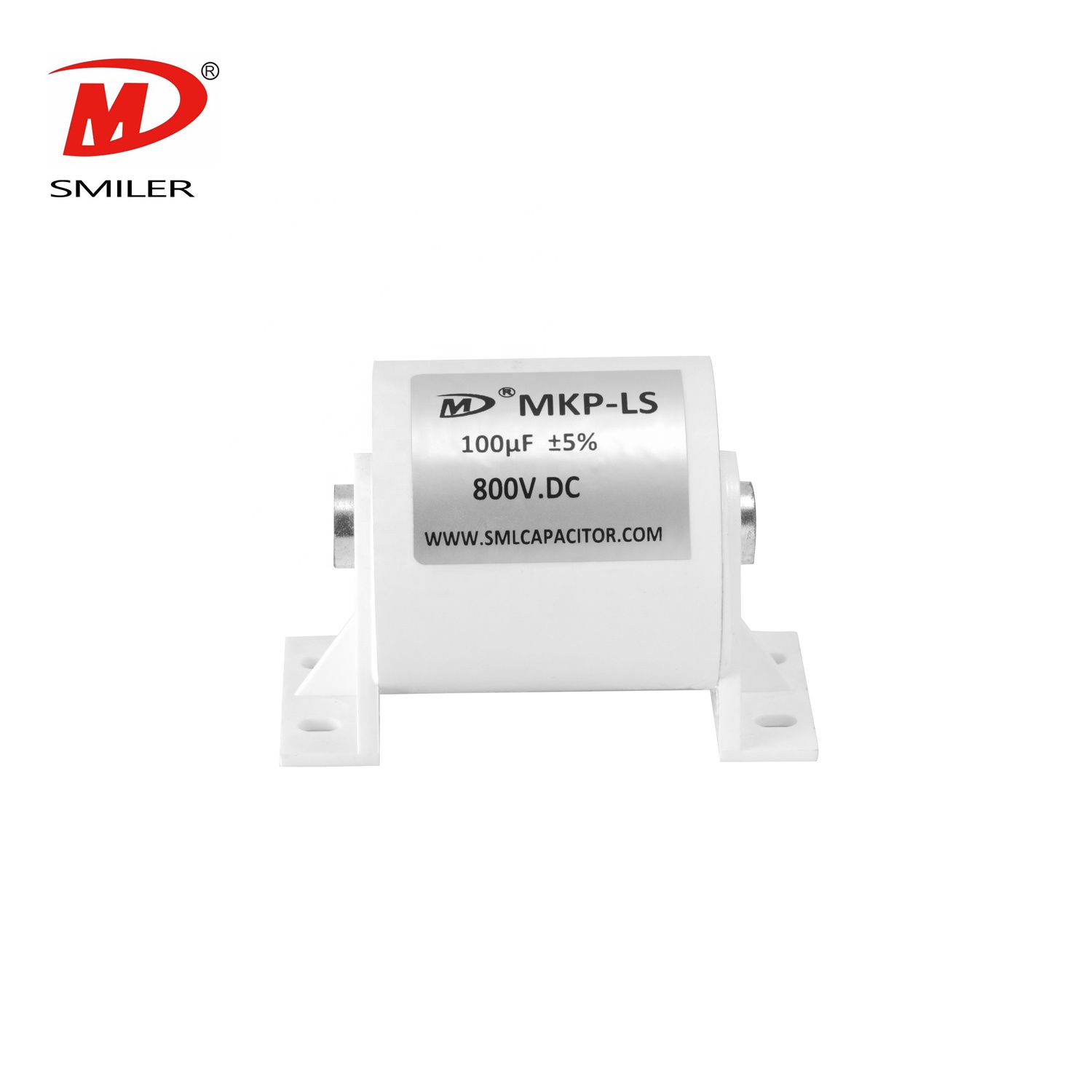

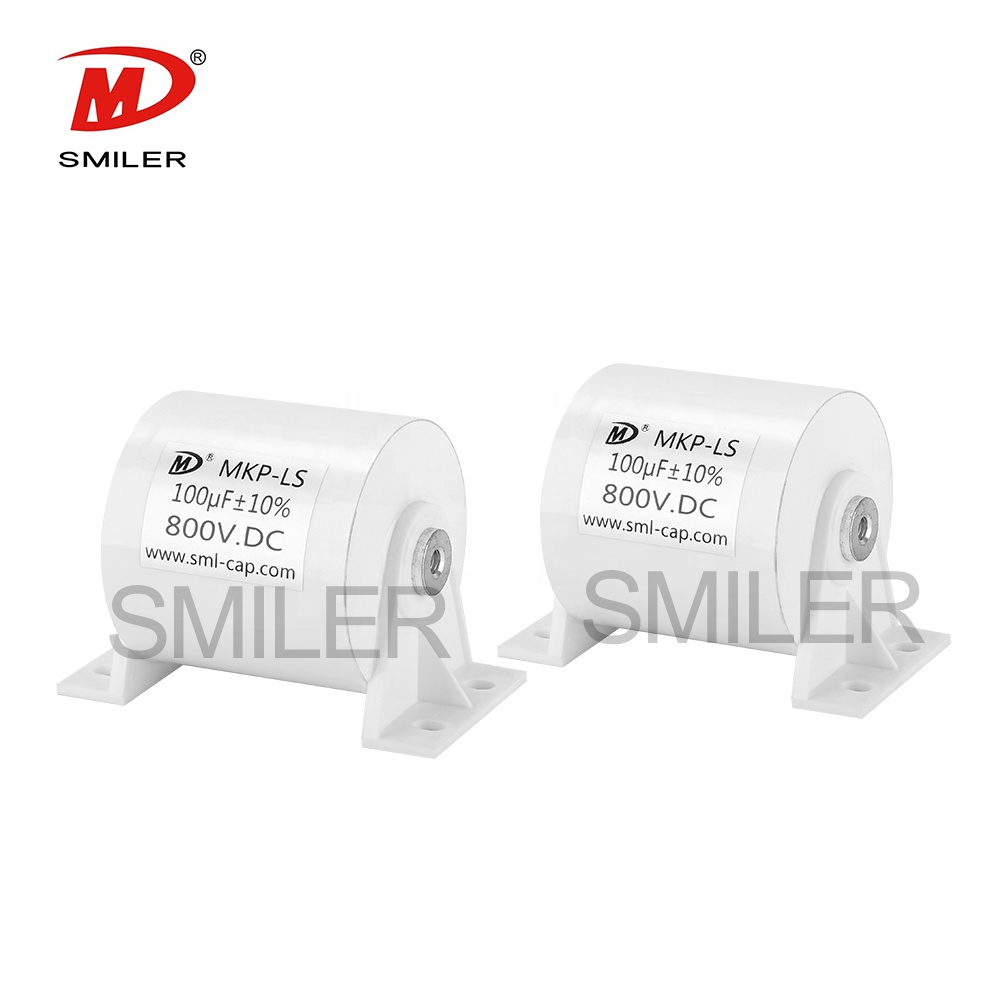

圆芯子Round core

2

500VDC

25

1200

≤10

1800V,10S

3000VAC,60S

≤10

Φ63*49

3

500VDC

35

1200

≤10

1800V,10S

3000VAC,60S

≤10

Φ63*49

4

500VDC

50

1200

≤10

1800V,10S

3000VAC,60S

≤10

Φ63*49

5

500VDC

60

1300

≤10

1800V,10S

3000VAC,60S

≤10

Φ63*49

6

500VDC

80

1400

≤10

1800V,10S

3000VAC,60S

≤10

Φ76*49

10

1400VDC

6

200

≤10

1800V,10S

3000VAC,60S

≤30

Φ50*60

20

1400VDC

10

200

≤10

1800V,10S

3000VAC,60S

≤30

Φ50*60

50

350VDC

14

200

≤10

600V,10S

3000VAC,60S

≤30

Φ50*60

40

800VDC

10

200

≤10

1200V,10S

3000VAC,60S

≤30

Φ40*60

60

800VDC

15

200

≤10

1200V,10S

3000VAC,60S

≤30

Φ50*60

100

800VDC

28

200

≤10

1200V,10S

3000VAC,60S

≤30

Φ62*60

200

800VDC

26

200

≤10

1200V,10S

3000VAC,60S

≤30

Φ60*110
