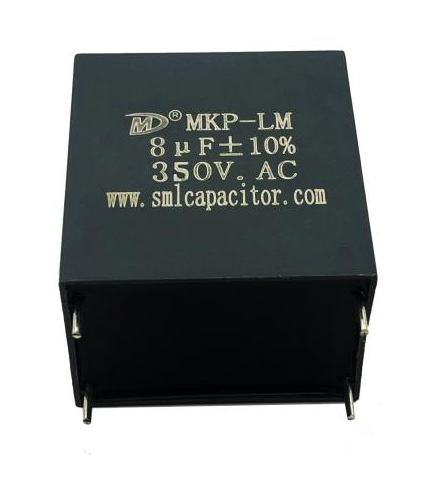

MKP-AM( PCB-AC THB型）OK1

MKP-AM

AC Filter capacitors are used for AC filtering and high-frequency harmonic processing.

Whatsapp us

■Product Structure

Medium: metallized polypropylene film

Shell: Plastic shell package

Internal potting: resin filling (UL94 V-0)

■Features

Large capacitance,small size

Excellent over voltage and over current capability

High reliability,Self-healing property,Long lifetime

■Applications

Output AC filtering for power converters,UPS, motor drives

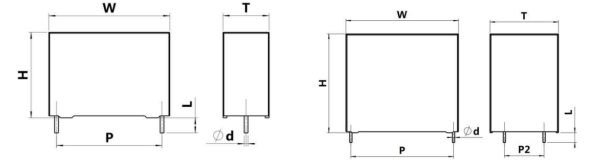

■ Outline Drawing

■ Specifications

Reference standard	GB/T17702-2021(IEC61071:2007)；IEC 60068
Climatic category	40/105/56，40/85/56
Operating temperature range (case)	Max. operating temperature, Top +105℃ Lower category temperature Tmin -40℃
For temperatures between 85 °C and 105 °C	1.5%/°C of Vop derating compared to VR at 85 °C
Ratedvoltage（V_R)85℃	250 VAC；310 VAC；350 VAC；400 VAC
Capacitance tolerance	J(±5%） K(±10%）
DC test voltage between terminals (10 s)	1.5*V_R
Voltage test terminal to case (10 s)	2100 V AC, 50 Hz
Insulation Resistance	> 10 000 s ( 20℃，100vdc，1min)
Maximum peak current	I_P=C*dV/dT
Operation life time	60 000 h at VR and 85℃
Biased humidity test Performance requirements	1000 hours / 60 °C / 95% relative humidity with VR Capacitance change ∣ΔC/C∣ ≤ 5% Dissipation factor change Ä tan ä ≤ 0.025 (at 10 kHz) Insulation resistance Rins ≥ 50% of initial limit

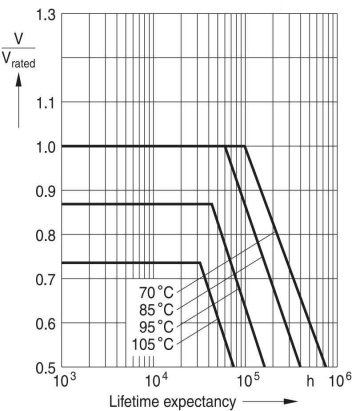

■ Expected Lifetime curve

■ Technical data ( mm )

V_RMS=250Vac U_N=350Vac U_NDC=500Vdc at 85℃
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	Tgδ*10-4		ESR@ 10kHz(mΩ）	Irms@85℃10kHz （A）
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	1kHz	10kHz	ESR@ 10kHz(mΩ）	Irms@85℃10kHz （A）
1.5	32.0	21.0	11.0	27.5	-	0.8	50	8	15	20.0	4.0
2.0	32.0	21.5	12.0	27.5	-	0.8	50	8	15	15.0	5.0
2.5	32.0	23.5	13.0	27.5	-	0.8	50	8	15	12.0	5.5
3.0	32.0	24.5	15.0	27.5	-	0.8	50	8	15	9.0	6.5
4.0	32.0	30.0	16.0	27.5	-	0.8	50	8	15	6.5	8.5
4.5	32.0	27.5	18.0	27.5	-	0.8	50	8	15	5.5	9.0
5.0	32.0	33.0	18.0	27.5	-	0.8	50	8	15	5.8	9.5
6.0	32.0	31.0	21.0	27.5	-	0.8	50	8	15	4.5	10.0
7.0	32.0	37.0	22.0	27.5	-	1.0	50	8	15	4.0	12.0
4.0	42.0	24.0	15.0	37.5	-	0.8	25	10	25	9.5	6.0
5.0	42.0	24.0	19.0	37.5	-	0.8	25	10	25	8.0	7.0
6.0	42.0	30.0	16.0	37.5	-	0.8	25	10	25	7.0	8.0
12	42.0	40.0	20.0	37.5	-	1.0	25	10	25	5.0	12.0
15	42.0	44.0	24.0	37.5	-	1.0	25	15	35	4.0	14.0
18	42.0	42.5	28.0	37.5	-	1.0	25	15	35	3.5	16.0
20	42.0	45.0	30.0	37.5	-	1.0	25	15	35	3.0	18.0
24	42.0	50.0	35.0	37.5	-	1.0	25	15	35	2.5	20.0
30	57.5	45.0	30.0	52.5	20.3	1.2	13	25	80	3.5	18.0
40	57.5	50.0	35.0	52.5	20.3	1.2	13	25	80	3.0	22.0

V_RMS=310Vac U_N=430Vac U_NDC=580Vdc at 85℃
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	Tgδ*10-4		ESR@ 10kHz (mΩ）	Irms@85℃10kHz （A）
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	1kHz	10kHz	ESR@ 10kHz (mΩ）	Irms@85℃10kHz （A）
0.68	32.0	18.0	9.0	27.5	-	0.8	65	8	15	30.0	2.5
1.0	32.0	21.0	11.0	27.5	-	0.8	65	8	15	22.0	3.5
1.5	32.0	23.5	13.0	27.5	-	0.8	65	8	15	15.0	4.0
2.0	32.0	24.5	15.0	27.5	-	0.8	65	8	15	12.0	5.5
2.5	32.0	30.0	16.0	27.5	-	0.8	65	8	15	9.5	6.5
3.0	32.0	27.5	18.0	27.5	-	0.8	65	8	15	8.5	7.0
4.0	32.0	31.0	21.0	27.5	-	1.0	65	8	15	6.5	9.0
5.0	32.0	37.0	22.0	27.5	-	0.8	65	8	15	5.5	10.5
3.0	42.0	24.0	15.0	37.5	-	0.8	35	8	15	10.0	5.5
4.0	42.0	24.0	19.0	37.5	-	0.8	35	10	25	8.5	6.5
4.5	42.0	30.0	16.0	37.5	-	1.0	35	10	25	7.5	7.0
8.0	42.0	40.0	20.0	37.5	-	1.0	35	10	25	5.5	12.0
10	42.0	44.0	24.0	37.5	-	1.0	35	10	25	4.5	13.0
12	42.0	42.5	28.0	37.5	-	1.0	35	15	30	4.0	13.5
14	42.0	45.0	30.0	37.5	-	1.0	35	15	30	3.5	15.0
18	42.0	50.0	35.0	37.5	-	1.2	35	15	30	3.0	18.0
18	57.5	45.0	30.0	52.5	20.3	1.2	35	15	30	4.5	18.0
20	57.5	45.0	30.0	52.5	20.3	0.8	15	25	60	4.0	19.0
25	57.5	50.0	35.0	52.5	20.3	0.8	15	25	60	3.5	21.0

V_RMS=350Vac U_N=480Vac U_NDC=600Vdc at 85℃
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	Tgδ*10-4		ESR@ 10kHz (mΩ）	Irms@85℃10kHz （A）
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	1kHz	10kHz	ESR@ 10kHz (mΩ）	Irms@85℃10kHz （A）
0.47	32.0	18.0	9.0	27.5	-	0.8	80	8	15	15.0	2.5
0.68	32.0	21.0	11.0	27.5	-	0.8	80	8	15	14.0	3.5
1.0	32.0	23.5	13.0	27.5	-	0.8	80	8	15	12.0	4.5
1.5	32.0	24.5	15.0	27.5	-	0.8	80	8	15	10.0	5.5
1.8	32.0	30.0	16.0	27.5	-	0.8	80	8	15	9.0	6.0
2.0	32.0	27.5	18.0	27.5	-	0.8	80	8	15	8.5	6.5
2.2	32.0	33.0	18.0	27.5	-	0.8	80	8	15	7.5	7.0
3.3	32.0	37.0	22.0	27.5	-	0.8	80	8	15	6.0	8.0
2.0	42.0	24.0	15.0	37.5	-	0.8	50	8	15	8.0	6.5
2.5	42.0	24.0	19.0	37.5	-	0.8	50	10	25	7.0	7.0
3.0	42.0	30.0	16.0	37.5	-	0.8	50	10	25	5.0	10
5.0	42.0	40.0	20.0	37.5	-	1.0	50	10	25	4.5	12
7.0	42.0	44.0	24.0	37.5	-	1.0	50	10	25	4.0	13
9.0	42.0	45.0	30.0	37.5	-	1.0	50	12	30	3.5	14
12	42.0	50.0	35.0	37.5	-	1.0	50	12	30	3.0	15
12	57.5	45.0	30.0	52.5	20.3	1.2	25	12	30	4.5	17
14	57.5	45.0	30.0	52.5	20.3	1.2	25	12	30	4.0	18
18	57.5	50.0	35.0	52.5	20.3	1.2	25	22	50	3.0	20
22	57.5	57.0	38.0	52.5	20.3	1.2	25	22	50	2.5	22

V_RMS=400Vac UN=560Vac UNDC=800Vdc at 85℃
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	Tgδ*10-4		ESR@ 10kHz (mΩ）	Irms@85℃10kHz （A）
C（uF）	W ±1	H ±1	T ±1	P ±0.5	P2 ±0.5	d ±0.05	dV/dt （V/us）	1kHz	10kHz	ESR@ 10kHz (mΩ）	Irms@85℃10kHz （A）
0.33	32.0	18.0	9.0	27.5	-	0.8	100	8	15	20.0	2.0
0.47	32.0	21.0	11.0	27.5	-	0.8	100	8	15	18.0	3.0
0.68	32.0	23.5	13.0	27.5	-	0.8	100	8	15	15.0	4.0
0.82	32.0	23.5	13.0	27.5	-	0.8	100	8	15	12.0	5.0
1.0	32.0	24.5	15.0	27.5	-	0.8	100	8	15	10.0	5.5
1.2	32.0	30.0	16.0	27.5	-	0.8	100	8	15	9.0	6.0
1.5	32.0	27.5	18.0	27.5	-	0.8	100	8	15	8.5	6.5
2.0	32.0	31.0	21.0	27.5	-	0.8	100	8	15	8.0	7.0
2.5	32.0	37.0	22.0	27.5	-	0.8	100	8	15	7.0	8.0
1.5	42.0	24.0	15.0	37.5	-	0.8	60	10	25	11.0	5.5
2.0	42.0	24	19.0	37.5	-	0.8	60	10	25	10.0	6.0
2.2	42.0	30	16.0	37.5	-	0.8	60	10	25	9.0	7.0
4.0	42.0	40	20.0	37.5	-	1.0	60	10	25	7.5	9.0
6.0	42.0	44	24.0	37.5	-	1.0	60	12	30	6.5	11.0
7.5	42.0	42.5	28.0	37.5	-	1.0	60	12	30	5.5	13.0
10	42.0	50	35.0	37.5	20.3	1.0	60	12	30	4.0	15.0
10	57.5	45.0	30.0	52.5	20.3	1.2	30	12	30	3.5	17.0
14	57.5	50.0	35.0	52.5	20.3	1.2	30	22	45	3.0	19.5
18	57.5	57.0	38.0	52.5	20.3	1.2	30	22	45	2.5	21.0

More product sizes and parameters need to be customized
