MKPH-LS

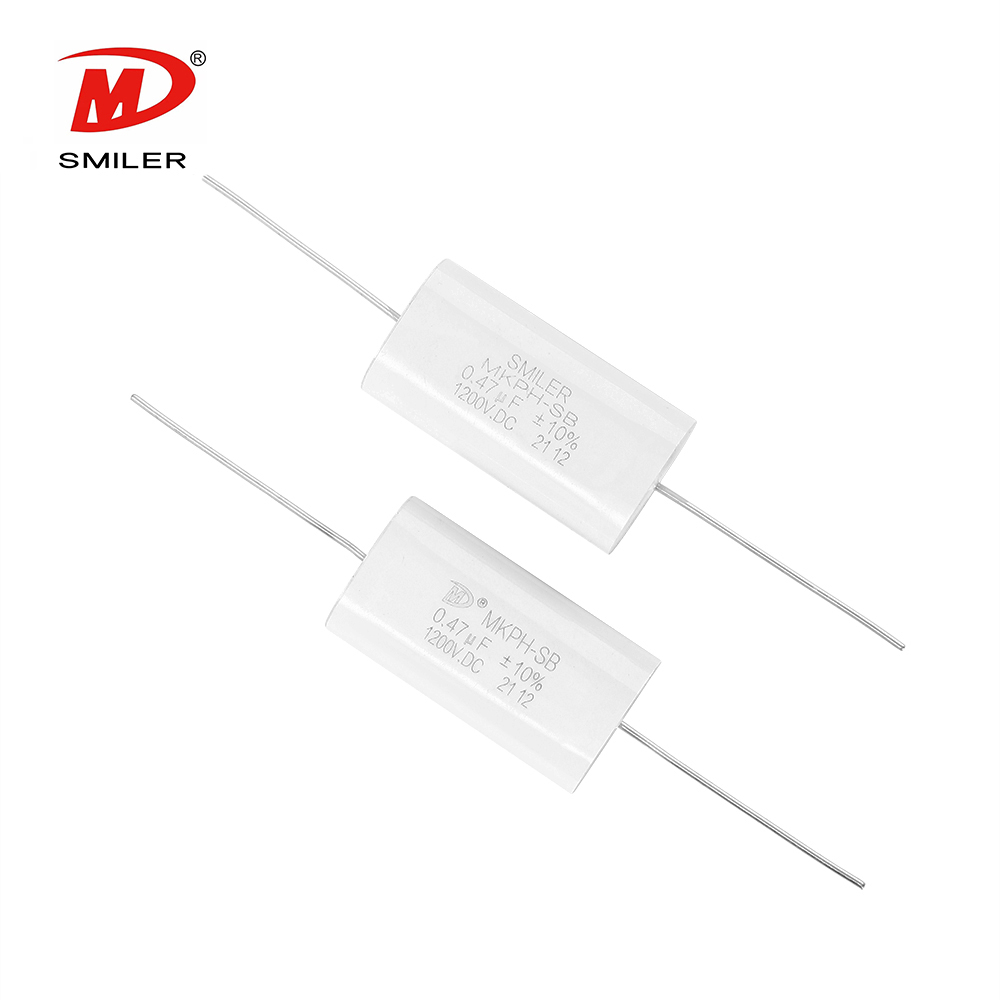

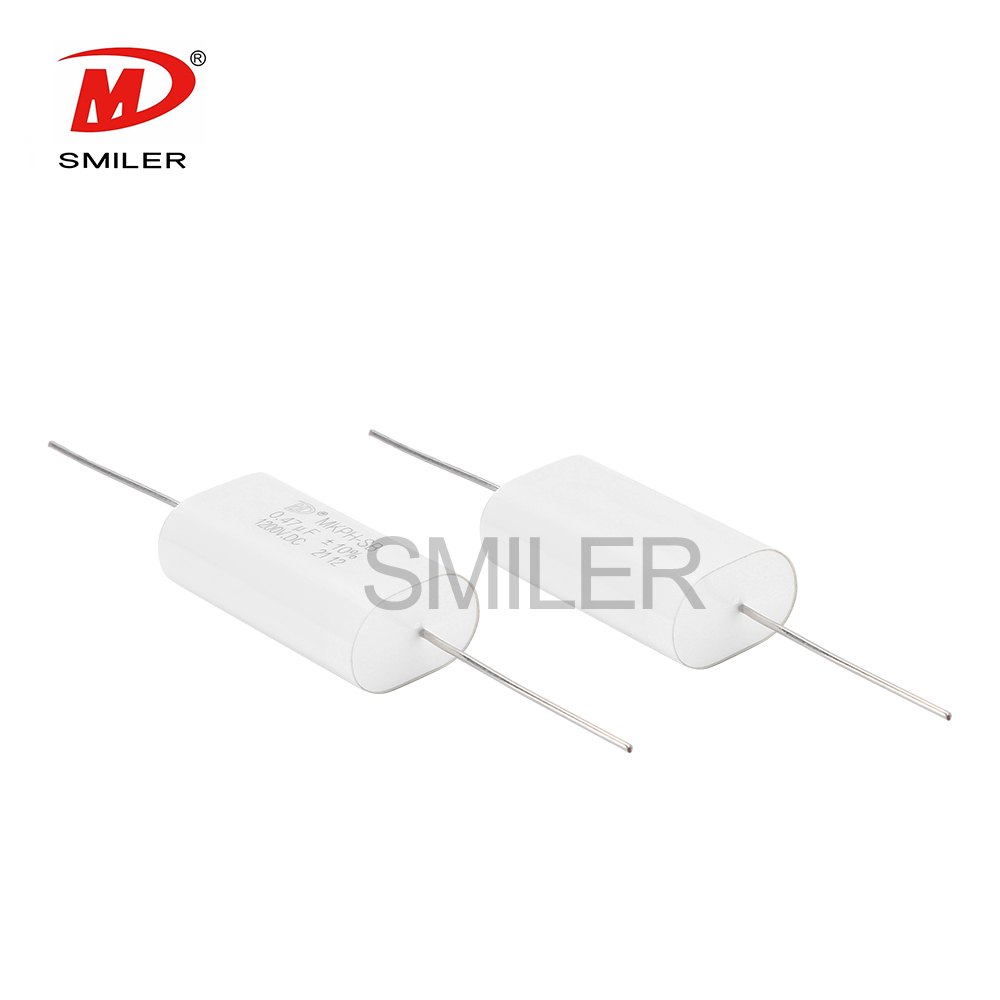

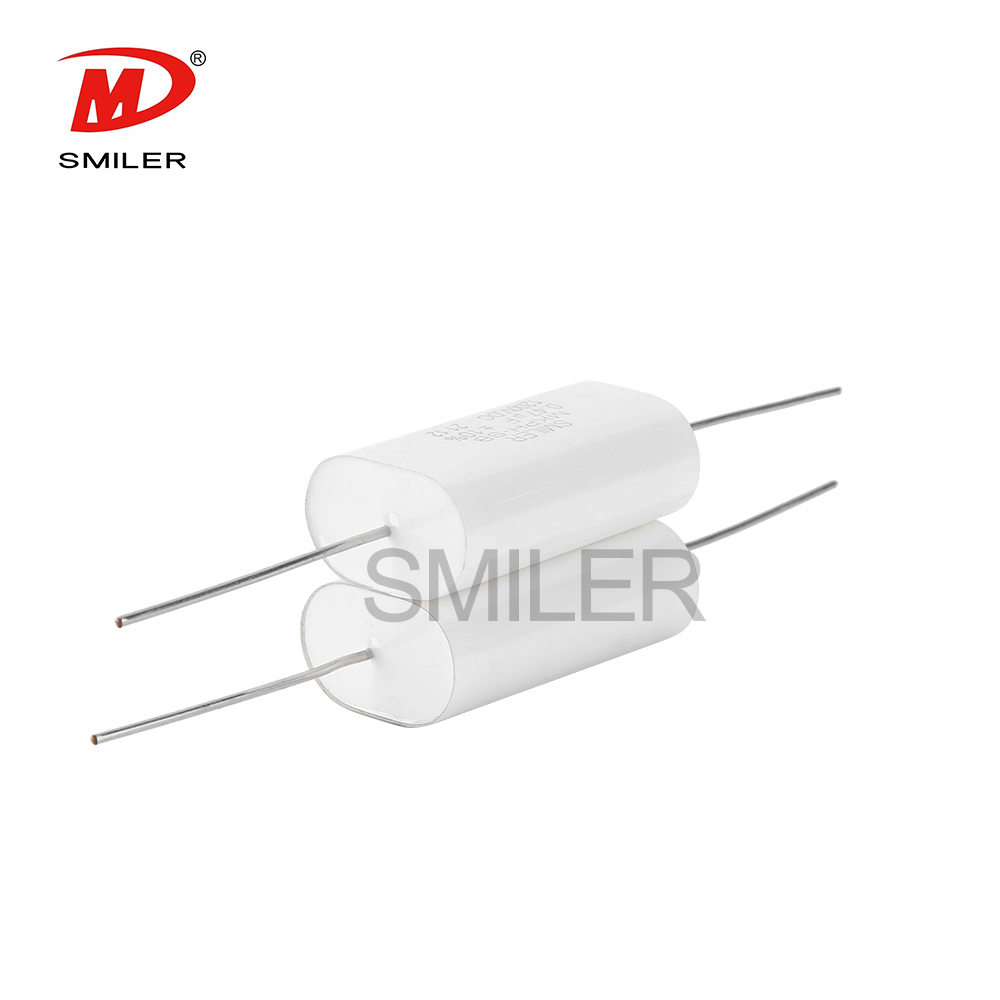

Made by winding metalized polypropylene film, encapsulated with Mylar tape, and led out with tin plated copper wire, copper plug or flexible wire.
Used for absorption protection, peak voltage clamping, and other applications in various inverter system switch modules (IGBT) such as inverters and frequency converters.

Whatsapp us

■Product Structure

Medium: metallized polypropylene film

Shell: Plastic shell or Mylar Tape housing

Internal potting: resin filling (UL94 V-0)

■Features

Small product size, excellent heat dissipation

Tinned copper terminals as a lead.

Low self-inductance and equivalent series resistance.

Strong ability for withstanding impacting of current.

■Applications

IGBT surge absorption

High frequency resonant circuit

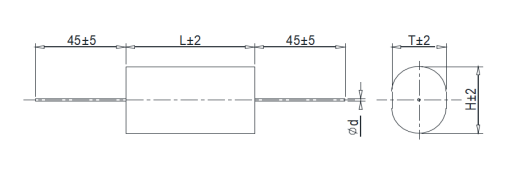

■ Outline Drawing

■Specifications

Reference standard	GB/T17702, IEC 61071
Climatic category	40/85/56
Operating temperature range (case)	Max.operating temperature, Top +85℃ Lower category temperature Tmin -40℃
For temperatures between 85°C and 105 °C	1.33%/°C of Vop derating compared to VR at 85 °C
Rated voltag（VR)85℃	700VDC-3000VDC
Capacitance tolerance	J(±5%） K(±10%）
DC test voltage between terminals (10 s)	1.5*VR
Voltage test terminal to case (10 s)	3000 V AC, 50 Hz
Insulation Resistance	> 10 000 s ( 20℃，100vdc，1min)
Maximum peak current	I_P=C*dV/dT
Operation life time	100 000 h at VR and 70℃

■Technical data ( mm )

电容量C （μF)	size（mm）				DV/dT （V/μS)	Ipeak (A)	Irms@60℃ 10kHz(A)	ESR @100kHz (mΩ)
电容量C （μF)	L	T	H	d	DV/dT （V/μS)	Ipeak (A)	Irms@60℃ 10kHz(A)	ESR @100kHz (mΩ)
Un 700VDC,Urms 380VAC，Us 1050V
0.33	32	9.5	17.8	0.8	480	106	6.0	13.5
0.47	32	11.2	20.6	0.8	480	226	8.0	8.5
0.68	32	15.4	22.8	1.0	480	326	8.5	7.4
0.68	44	11.5	19.5	1.0	350	238	8.0	8.2
1.0	44	14.0	22.0	1.0	350	350	8.5	7.5
1.5	44	16.5	27.5	1.2	350	525	12	6.5
2.0	44	20.5	31.0	1.2	350	700	12	6.0
3.0	44	25.0	36.5	1.2	350	1050	12	5.5
4.0	57	23.8	35.5	1.2	250	1000	12	5.0
5.6	57	29.5	41.0	1.2	250	1400	12	4.0

Capacity （μF)	Size（mm）				DV/dT （V/μS)	Ipeak (A)	Irms@60℃ 10kHz(A)	ESR @100kHz (mΩ)
Capacity （μF)	L	T	H	d	DV/dT （V/μS)	Ipeak (A)	Irms@60℃ 10kHz(A)	ESR @100kHz (mΩ)
Un 850VDC,Urms 450VAC，Us 1275V
0.22	32	9.5	17.2	0.8	700	154	6.5	15.5
0.33	32	11.8	19.8	1.0	700	231	8.0	11.0
0.47	32	14.5	22.5	1.0	700	329	9.0	12.5
0.47	44	11.0	19.0	1.0	400	188	9.0	8.0
0.68	44	13.5	21.5	1.0	400	272	9.0	6.2
1.0	44	15.8	27.2	1.2	400	400	12	6.5
1.5	44	20.5	31.5	1.2	400	600	12	6.0
2.2	44	25.5	36.8	1.2	400	880	12	5.0
3.0	57	24.5	35.8	1.2	300	900	12	3.5
4.0	57	29.0	40.5	1.2	300	1200	12	2.8
Un 1000VDC,Urms 480VAC，Us 1500V
0.22	32	11.0	19.0	1.0	850	187	7.0	13.2
0.33	32	14.0	22.0	1.0	850	281	8.0	9.5
0.47	32	16.0	27.5	1.0	850	400	9.0	9.0
0.68	44	14.5	26.2	1.0	570	388	9.0	8.5
1.0	44	18.5	30.5	1.2	570	570	12	7.5
1.5	44	24.0	35.8	1.2	570	855	12	7.2
2.2	57	24.2	36.5	1.2	350	770	12	6.5
3.3	57	32.5	39.5	1.2	350	1150	12	5.2
Un 1200VDC,Urms 500VAC，Us 1800V
0.15	32	9.8	17.5	1.0	1100	165	6.0	13.5
0.22	32	12.5	20.5	1.0	1100	242	9.0	11.5
0.33	32	15.5	23.5	1.0	1100	363	9.0	10.5
0.47	44	14.5	22.5	1.0	650	306	9.0	10.5
0.68	44	16.5	27.5	1.2	650	442	12	6.8
1.0	44	21.2	32.5	1.2	650	650	12	6.5
1.2	44	23.5	34.5	1.2	650	780	12	6.2
1.5	44	26.5	38.5	1.2	650	975	12	6.8
2.0	57	25.5	36.8	1.2	385	770	12	5.8
2.5	57	29.0	41.0	1.2	385	963	12	5.5
Un 1700VDC/1600VDC, Urms 575VAC，Us 2550V
0.10	32	11.5	19.5	0.8	1350	135	4.0	20.5
0.15	32	14.5	22.5	1.0	1350	203	8.0	13.5
0.22	32	16.5	27.5	1.0	1350	297	9.0	7.8
0.33	44	15.5	26.8	1.0	880	290	9.0	7.5
0.47	44	19.5	31.0	1.2	880	414	12	5.5
0.68	44	24.5	35.5	1.2	880	598	12	5.4
1.0	44	31.0	41.5	1.2	880	880	12	4.5
1.2	57	27.5	38.5	1.2	610	732	12	3.6

Capacity （μF)	Size（mm）				DV/dT （V/μS)	Ipeak (A)	Irms@60℃ 10kHz(A)	ESR @100kHz (mΩ)
Capacity （μF)	L	T	H	d	DV/dT （V/μS)	Ipeak (A)	Irms@60℃ 10kHz(A)	ESR @100kHz (mΩ)
Un 2000VDC, Urms 630VAC，Us 3000V
0.068	32	10.5	18.5	1.0	1750	119	5.5	24.5
0.10	32	13.0	21.2	1.0	1750	175	6.5	14.5
0.15	44	12.5	21.0	1.0	1000	150	9.0	9.5
0.22	44	15.5	23.5	1.0	1000	220	9.0	9.0
0.33	44	18.5	30.0	1.2	1000	330	12	6.5
0.47	44	23.5	34.5	1.2	1000	470	12	5.5
0.56	44	26.0	37.4	1.2	1000	560	12	5.0
0.56	57	20.5	31.5	1.2	640	358	12	5.5
0.68	57	22.5	34.0	1.2	640	435	12	5.0
1.0	57	28.5	40.5	1.2	640	640	12	4.8
Un 2500VDC,Urms 700VAC，Us 3750V
0.047	32	10.5	18.5	0.8	2150	101	5	25.4
0.068	32	13.0	21.2	1.0	2150	146	6.5	23.5
0.10	32	15.0	26.5	1.0	2150	215	8.0	13.5
0.15	44	15.5	23.5	1.0	1350	203	9.0	12.5
0.22	44	18.5	29.5	1.2	1350	297	10.0	11.5
0.33	44	23.5	34.5	1.2	1350	446	12	10.5
0.47	57	22.8	34.5	1.2	880	414	12	7.0
0.68	57	28.5	39.5	1.2	880	598	12	6.0
Un 3000VDC,Urms 750VAC，Us 4500V
0.033	32	11.0	19.5	1.0	2750	91	5.0	35.5
0.047	32	13.8	21.5	1.0	2750	129	6.5	26.2
0.068	44	12.5	21.0	1.0	1600	109	8.0	25.1
0.10	44	14.5	25.5	1.2	1600	160	11	17.8
0.15	44	18.9	30.2	1.2	1600	240	12	17.5
0.22	44	23.5	34.8	1.2	1600	352	12	15.4
0.33	57	24.5	35.5	1.2	990	327	12	9.5
0.39	57	26.5	38.0	1.2	990	386	12	7.8

More product sizes and parameters need to be customized
